Buy Single Acting Flat Jacks in Kuwait – Compact & Precise Hydraulic Lifting
Need a powerful lift in a tight space? If you're in Kuwait and on the hunt for a reliable Single Acting Flat Jack Kuwait supplier, you're in the right place. These Hydraulic Flat Jack solutions will help where space is limited, but strength is everything.
With the low profile lifting jack design and compact hydraulic jack, they slide right into narrow spots while handling heavy loads with ease. Built with rugged steel and wear-resistant seals, each industrial flat jack is designed to take on repeated use without giving in.
What Are Single Acting Flat Jacks?

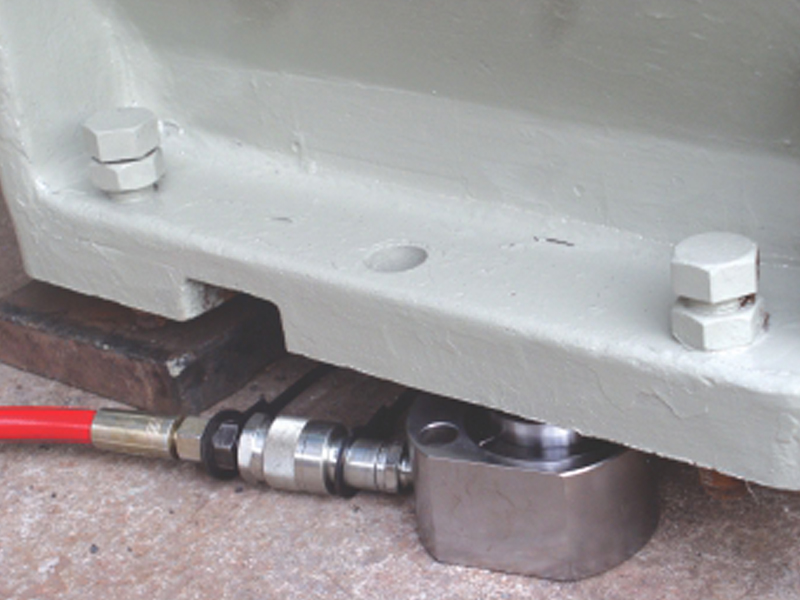

A hydraulic lifting device designed for heavy-duty jobs is what a single acting flat jack is. It is where vertical space is tight, but power is still a must. Unlike traditional jacks, it has a low profile jack structure. This helps with bridge lifting, heavy machine positioning, maintenance jobs, and confined industrial setups.
These jacks operate with a single acting hydraulic cylinder, meaning hydraulic pressure lifts the load while gravity or an external force retracts the piston. This makes them simpler to maintain and quicker to use on-site. The Hydraulic Flat Jack overview also includes a hardened steel body, corrosion-resistant coating, and grooved piston heads for better load grip.
Used by major players like Technotorc and PJM Industrial, these jacks are known for their direct lift power, space-saving frame, and ease of placement. When equipment gets heavy, a Single Acting Flat Jack is the trusted pick.
Technical Specifications – Single Acting Flat Jacks
Capacity 5 - 200 ton / Stroke 8 - 16 mm / Max. Working pressure 700 bar| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 5 | 56 | 8 | OSF 5-8 | 8 | 6 | 35 | 0.6 |
| 10 | 111 | 12 | OSF 10-12 | 15.9 | 19 | 45 | 1.3 |
| 20 | 218 | 12 | OSF 20-12 | 31.2 | 37 | 55 | 2.6 |
| 30 | 309 | 12 | OSF 30-12 | 44.2 | 53 | 60 | 3.8 |
| 50 | 550 | 16 | OSF 50-16 | 78.5 | 126 | 65 | 6.2 |
| 75 | 792 | 16 | OSF 75-16 | 113.1 | 180 | 80 | 11.8 |
| 100 | 1077 | 16 | OSF 100-16 | 153.9 | 247 | 85 | 15.1 |
| 150 | 1589 | 16 | OSF 150-16 | 227 | 363 | 100 | 27 |
| 200 | 1985 | 16 | OSF 200-16 | 283.5 | 454 | 115 | 40.7 |
Key Features of Single Acting Flat Jacks
Let’s talk about what really makes these jacks awesome! If you’re curious about the features of Single Acting Flat Jack, here’s a super friendly breakdown of why pros in Kuwait (and everywhere else) love using them. They’re compact, powerful, and built to last. Once you’ve tried them, there’s no going back!
- Built
One of the biggest Flat Jack benefits is the low height design. Some models are just under 50 mm tall when collapsed! That means you can slide them into super tight spaces where regular jacks won’t even stand a chance. - Lifts Heavy Things
These jacks have high load capacity, and some models lift up to 200 tons. If it’s heavy machines or big concrete blocks, these compact champs handle the job with no difficulty. - Smart Self-Retracting Action
The clever spring return feature and the piston that slides back smoothly once the pressure’s off are the best features. It makes repetitive lifting faster, easier, and way less tiring. All jacks are made with a durable steel body, which means they’re just strong.
These are just some of the top features of Single Acting Flat Jack that make it a favorite among engineers, riggers, and contractors. Backed by trusted names like Hi-Force and Enerpac, these jacks are all about delivering dependable power. It is especially when space is tight and every second counts.
Applications of Single Acting Flat Jacks in Kuwait
The Hydraulic Flat Jack uses in Kuwait is shaped by oil, construction, shipping, and infrastructure. Here are the single acting applications.
- Refinery Maintenance
Places like Ahmadi and Shuaiba refineries get HOT, and in those zones, equipment lifts need to be quick and reliable. These jacks are made for maintenance operations, whether it's nudging heavy pumps or accessing valves tucked underneath big machinery. Their low clearance lifting magic means less downtime and smoother fixes in tight refinery corners. - Helping Big Builds
When it comes to structural lifting in Kuwait’s busy construction sites, Single Acting Jack applications are a total lifesaver. They are best for slabs to lift with precision and adjust columns or raise decks. - Heavy Machinery
On factory floors across Kuwait, especially where presses or rollers need shifting, these jacks work the best. With a design that doesn’t get in the way, they offer steady industrial repairs.
So, if you’re a contractor or technician, the Hydraulic Flat Jack uses in Kuwait keeps proving just how strong and space-smart these tools really are.
Why Choose Orione Hydropower for Single Acting Flat Jacks in Kuwait?
If you’re on the hunt for a Hydraulic Jack Supplier in Kuwait that truly gets the job done, Orione Hydropower is the name you can trust. What makes them special is that they help you pick the right one, deliver it on time, and stay by your side if you need help. With Orione, you’re a partner who’s got your back on every lift.
- Field-Tested Quality Assurance
Every jack supplied undergoes pressure testing and quality checks before dispatch. Clients buying from Orione don’t just buy flat jacks in Kuwait. They receive gear that’s built for rough handling and repeat use in sites like Mina Abdullah, Shuaiba, and beyond. - Support on the Ground
Orione doesn’t leave customers guessing. From load calculations to model selection, their team helps with sizing, fitting, and compatibility. It is especially useful for first-time buyers or plant technicians handling shutdown jobs. Get expert technical support. - Strong Track Record Across Kuwait's Key Sectors
Along with marine yards and cement plants, Orione’s jacks are already working behind the scenes. That local presence gives them insights into what Kuwaiti projects really demand from reliable hydraulic equipment.
For those who value dependable tools and clear communication, Orione is more than just a seller.
Download Flat Jack Datasheet & Brochure
Searching for specs, you can keep on hand? Get the Flat Jack Datasheet Kuwait and the full brochure in one go. These PDFs include tonnage charts, stroke ranges, pressure ratings, and model dimensions. It is ready to support your next RFQ or shutdown plan.
Download the Hydraulic Jack Brochure now for full technical insights, diagrams, and part references. It is perfect for engineers, buyers, and maintenance teams. This technical data PDF is your quick-access reference built for real jobsite planning.
FAQs – Single Acting Flat Jacks
- 1. How to use a flat jack safely on-site?
- Each Single Acting Flat Jack should be placed on a stable, flat surface with full piston contact under the load. Use a pressure gauge with the pump to monitor load handling and never exceed rated tonnage. Avoid lifting on sloped or uneven surfaces, and always block or crib the load before any inspection work underneath. It is the most commonly asked flat jack FAQs.
- 2. What kind of maintenance does a hydraulic jack require?
- Routine hydraulic jack maintenance includes checking for oil leaks, inspecting piston wear, and keeping the dust seals clean. Avoid using dirty hydraulic fluid, and never overfill the oil reservoir. And here's a safety tip: a jack that’s cleaned and bled after each use tends to last much longer.
- 3. What are the storage guidelines for a jack?
- Clean the jack, retract the piston fully, and store it horizontally in a dry, shaded area. Apply a thin coat of anti-rust oil on exposed metal parts. Proper storage guidelines help prevent corrosion and seal damage during long periods of non-use.
- 4. How to use flat jacks?
- Most flat jacks are designed for vertical lifting. Horizontal use is not recommended unless the manufacturer specifically allows it. Side loading can damage seals and reduce the jack’s working lifespan.
Request a Quote for Single Acting Flat Jacks in Kuwait
Planning to buy Single Acting Flat Jack Kuwait for your next project? Orione Hydropower makes the process simple and direct. Their team handles every quote with technical clarity and fast turnaround.
- Send Your Specs: Mention tonnage, stroke, and quantity. The more details you share, the quicker you get an accurate hydraulic jack quote.
- Contact Orione Hydropower Directly: Available via call, WhatsApp, or email, they respond fast and know the local project conditions across Kuwait.
- Request Price Based on Application: From bridge jacking to refinery lifts, each hydraulic lifting jack comes with model-specific pricing.
