Buy Single Acting General Purpose Jacks in Kuwait – Safe, Strong & Reliable
Need a heavy duty lifting jack that won't let you down when the weight gets serious? You're in the right place. If you're wrenching away in a dusty oilfield or handling heavy equipment in a bustling workshop, a General Purpose Jack in Kuwait is the muscle you need by your side.
These Single Acting Hydraulic Jacks are strong, compact, and built for the long purpose. Why are these hydraulic jacks a solid choice? They are made for tough jobs in construction, mining, rig work, or even emergency roadside setups. Compact single acting jacks include a durable piston and safety stop ring, adding extra protection during those high-tension lifts.
Also, they are popular with engineers and technicians who rely on top brands like Enerpac and Hi-Force to get the job done right. So, if you're in Kuwait and need an Industrial Hydraulic Jack that works hard and travels light, this one checks all the boxes.

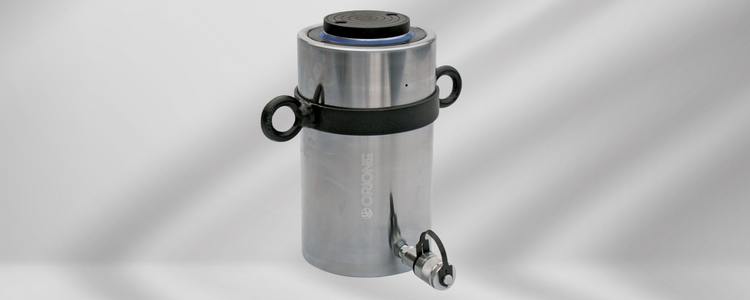

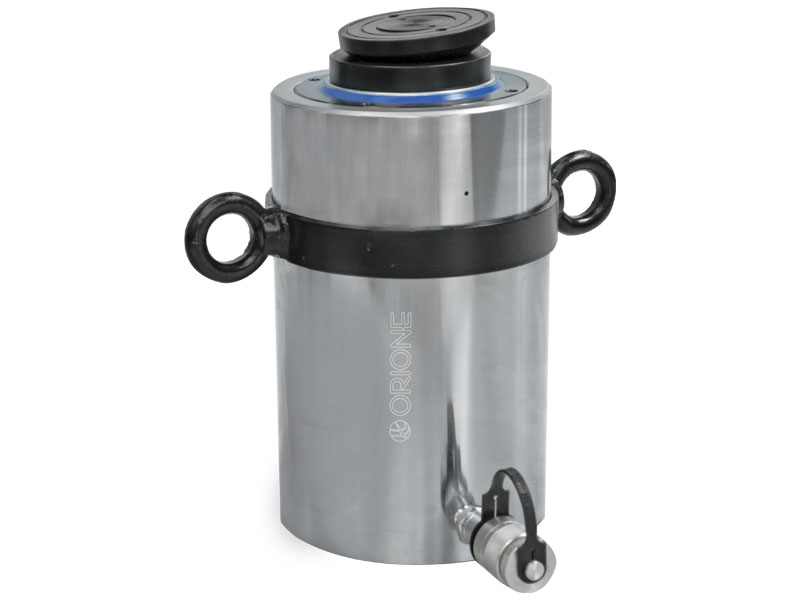

What Is a Single Acting General Purpose Hydraulic Jack?
A Single Acting Hydraulic Jack, a tool that does one job really well, is made for lifting heavy stuff using hydraulic pressure. It works in one direction only. That means it uses hydraulic fluid to push the piston up. And once the pressure is released, a strong internal spring pulls it back down. This type of return is called a spring return hydraulic cylinder.
Now, here's what many don't know: these portable jack design jacks are super common at job sites. But they're not just for mechanics. People use them in shipyards, construction, and even heavy machinery repairs.
This General Purpose Jack overview is all about doing tough work with a simple, dependable setup. Hydraulic lift jack doesn't need fancy electronics or complex setups; just solid force, compact size, and straightforward operation.
Top Features of General Purpose Single Acting Jacks
The Single Acting Hydraulic Jack is a friend who shows up, gets the heavy work done, and doesn't complain. Simple to use, strong as heck, and super handy — here's why people love the features of Single Acting Hydraulic Jack:
- High Strength Body: You don't need a machine the size of a truck to lift something heavy. This jack may be small, but it packs a punch. It is one of the best Jack Design features for garages, job sites, or fixing around your space.
- Spring Return: After it lifts, it comes back down without you doing anything extra. Easy up, easy down. That's what the little spring inside does, and you don't even need to think about it.
- Lightweight Construction: No, it won't break your back. It's light enough to move from one place to another. Need to throw it in your car or toolbox? No problem.
- Compact Size: Got a tight corner or a weird spot where nothing else fits? This jack is your go-to.
Technical Specifications – Single Acting General Purpose Jacks
Capacity 5-1000 ton / Stroke 50-200 mm / Max. Working Pressure 700 bar| Capacity (ton) | Capacity (kN) | Stroke (mm) | Model | Effective area (cm2) | Oil cap. (cc) | Closed height (mm) | Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 5 | 56 | 50 | OSP 5-50 | 8 | 40 | 135 | 1.3 |
| 5 | 56 | 100 | OSP 5-100 | 8 | 80 | 185 | 1.8 |
| 5 | 56 | 150 | OSP 5-150 | 8 | 121 | 235 | 2.3 |
| 10 | 111 | 50 | OSP 10-50 | 15.9 | 80 | 135 | 2.4 |
| 10 | 111 | 100 | OSP 10-100 | 15.9 | 159 | 185 | 3.2 |
| 10 | 111 | 150 | OSP 10-150 | 15.9 | 239 | 235 | 4 |
| 10 | 111 | 200 | OSP 10-200 | 15.9 | 318 | 285 | 4.7 |
| 15 | 167 | 50 | OSP 15-50 | 23.8 | 119 | 140 | 4.4 |
| 15 | 167 | 100 | OSP 15-100 | 23.8 | 238 | 190 | 5.4 |
| 15 | 167 | 150 | OSP 15-150 | 23.8 | 356 | 240 | 6.4 |
| 15 | 167 | 200 | OSP 15-200 | 23.8 | 475 | 290 | 7.4 |
| 20 | 218 | 50 | OSP 20-50 | 31.2 | 156 | 145 | 4.8 |
| 20 | 218 | 100 | OSP 20-100 | 31.2 | 312 | 195 | 6 |
| 20 | 218 | 150 | OSP 20-150 | 31.2 | 468 | 245 | 7.4 |
| 20 | 218 | 200 | OSP 20-200 | 31.2 | 623 | 295 | 8.6 |
| 25 | 270 | 50 | OSP 25-50 | 38.5 | 192 | 155 | 6.7 |
| 25 | 270 | 100 | OSP 25-100 | 38.5 | 385 | 205 | 8.4 |
| 25 | 270 | 150 | OSP 25-150 | 38.5 | 577 | 255 | 10 |
| 25 | 270 | 200 | OSP 25-200 | 38.5 | 770 | 305 | 11.8 |
| 30 | 309 | 50 | OSP 30-50 | 44.2 | 221 | 160 | 9 |
| 30 | 309 | 100 | OSP 30-100 | 44.2 | 442 | 210 | 11.5 |
| 30 | 309 | 150 | OSP 30-150 | 44.2 | 663 | 260 | 13.5 |
| 30 | 309 | 200 | OSP 30-200 | 44.2 | 884 | 310 | 15.5 |
| 50 | 550 | 50 | OSP 50-50 | 78.5 | 393 | 175 | 15.5 |
| 50 | 550 | 100 | OSP 50-100 | 78.5 | 785 | 225 | 19 |
| 50 | 550 | 150 | OSP 50-150 | 78.5 | 1178 | 275 | 22.5 |
| 50 | 550 | 200 | OSP 50-200 | 78.5 | 1571 | 325 | 26.5 |
| 75 | 792 | 50 | OSP 75-50 | 113.1 | 565 | 180 | 22 |
| 75 | 792 | 100 | OSP 75-100 | 113.1 | 1131 | 230 | 27 |
| 75 | 792 | 150 | OSP 75-150 | 113.1 | 1696 | 280 | 33 |
| 75 | 792 | 200 | OSP 75-200 | 113.1 | 2262 | 330 | 38 |
| 100 | 1077 | 50 | OSP 100-50 | 153.9 | 770 | 185 | 30 |
| 100 | 1077 | 100 | OSP 100-100 | 153.9 | 1539 | 235 | 37.5 |
| 100 | 1077 | 150 | OSP 100-150 | 153.9 | 2309 | 285 | 44.5 |
| 100 | 1077 | 200 | OSP 100-200 | 153.9 | 3079 | 335 | 52 |
| 150 | 1589 | 50 | OSP 150-50 | 227 | 1135 | 200 | 54 |
| 150 | 1589 | 100 | OSP 150-100 | 227 | 2270 | 250 | 65 |
| 150 | 1589 | 150 | OSP 150-150 | 227 | 3405 | 300 | 76 |
| 200 | 2199 | 50 | OSP 200-50 | 314.2 | 1571 | 215 | 71 |
| 200 | 2199 | 100 | OSP 200-100 | 314.2 | 3142 | 265 | 86.5 |
| 200 | 2199 | 150 | OSP 200-150 | 314.2 | 4712 | 315 | 102 |
| 250 | 2661 | 100 | OSP 250-100 | 380.1 | 3801 | 270 | 109 |
| 250 | 2661 | 150 | OSP 250-150 | 380.1 | 5702 | 320 | 126 |
| 250 | 2661 | 200 | OSP 250-200 | 380.1 | 7603 | 370 | 143 |
| 300 | 3167 | 100 | OSP 300-100 | 452.4 | 4524 | 285 | 141 |
| 300 | 3167 | 150 | OSP 300-150 | 452.4 | 6786 | 335 | 164 |
| 300 | 3167 | 200 | OSP 300-200 | 452.4 | 9048 | 385 | 187 |
| 400 | 4008 | 100 | OSP 400-100 | 572.6 | 5726 | 315 | 190 |
| 400 | 4008 | 150 | OSP 400-150 | 572.6 | 8588 | 365 | 217 |
| 400 | 4008 | 200 | OSP 400-200 | 572.6 | 11451 | 415 | 243 |
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 10 | 111 | 50 | OSPS 10-50 | 15.9 | 80 | 145 | 2.6 |
| 10 | 111 | 100 | OSPS 10-100 | 15.9 | 159 | 195 | 3.4 |
| 10 | 111 | 150 | OSPS 10-150 | 15.9 | 239 | 245 | 4.2 |
| 10 | 111 | 200 | OSPS 10-200 | 15.9 | 318 | 295 | 4.9 |
| 15 | 167 | 50 | OSPS 15-50 | 23.8 | 119 | 155 | 4.6 |
| 15 | 167 | 100 | OSPS 15-100 | 23.8 | 238 | 205 | 5.6 |
| 15 | 167 | 150 | OSPS 15-150 | 23.8 | 356 | 255 | 6.6 |
| 15 | 167 | 200 | OSPS 15-200 | 23.8 | 475 | 305 | 7.6 |
| 20 | 218 | 50 | OSPS 20-50 | 31.2 | 156 | 160 | 5.1 |
| 20 | 218 | 100 | OSPS 20-100 | 31.2 | 312 | 210 | 6.3 |
| 20 | 218 | 150 | OSPS 20-150 | 31.2 | 468 | 260 | 7.7 |
| 20 | 218 | 200 | OSPS 20-200 | 31.2 | 623 | 310 | 8.9 |
| 25 | 270 | 50 | OSPS 25-50 | 38.5 | 192 | 170 | 7 |
| 25 | 270 | 100 | OSPS 25-100 | 38.5 | 385 | 220 | 8.7 |
| 25 | 270 | 150 | OSPS 25-150 | 38.5 | 577 | 270 | 10.3 |
| 25 | 270 | 200 | OSPS 25-200 | 38.5 | 770 | 320 | 12.1 |
| 30 | 309 | 50 | OSPS 30-50 | 44.2 | 221 | 175 | 9.4 |
| 30 | 309 | 100 | OSPS 30-100 | 44.2 | 442 | 225 | 11.9 |
| 30 | 309 | 150 | OSPS 30-150 | 44.2 | 663 | 275 | 13.9 |
| 30 | 309 | 200 | OSPS 30-200 | 44.2 | 884 | 325 | 15.9 |
| 50 | 550 | 50 | OSPS 50-50 | 78.5 | 393 | 190 | 16 |
| 50 | 550 | 100 | OSPS 50-100 | 78.5 | 785 | 240 | 19.5 |
| 50 | 550 | 150 | OSPS 50-150 | 78.5 | 1178 | 290 | 23 |
| 50 | 550 | 200 | OSPS 50-200 | 78.5 | 1571 | 340 | 27 |
| 75 | 792 | 50 | OSPS 75-50 | 113.1 | 565 | 205 | 22.9 |
| 75 | 792 | 100 | OSPS 75-100 | 113.1 | 1131 | 255 | 27.9 |
| 75 | 792 | 150 | OSPS 75-150 | 113.1 | 1696 | 305 | 33.9 |
| 75 | 792 | 200 | OSPS 75-200 | 113.1 | 2262 | 355 | 38.9 |
| 100 | 1077 | 50 | OSPS 100-50 | 153.9 | 770 | 205 | 31 |
| 100 | 1077 | 100 | OSPS 100-100 | 153.9 | 1539 | 255 | 38.5 |
| 100 | 1077 | 150 | OSPS 100-150 | 153.9 | 2309 | 305 | 45.5 |
| 100 | 1077 | 200 | OSPS 100-200 | 153.9 | 3079 | 355 | 53 |
| 150 | 1589 | 50 | OSPS 150-50 | 227 | 1135 | 225 | 56 |
| 150 | 1589 | 100 | OSPS 150-100 | 227 | 2270 | 275 | 67 |
| 150 | 1589 | 150 | OSPS 150-150 | 227 | 3405 | 325 | 78 |
| 200 | 2199 | 50 | OSPS 200-50 | 314.2 | 1571 | 240 | 74.5 |
| 200 | 2199 | 100 | OSPS 200-100 | 314.2 | 3142 | 290 | 90 |
| 200 | 2199 | 150 | OSPS 200-150 | 314.2 | 4712 | 340 | 105.5 |
| 250 | 2661 | 100 | OSPS 250-100 | 380.1 | 3801 | 305 | 114 |
| 250 | 2661 | 150 | OSPS 250-150 | 380.1 | 5702 | 355 | 131 |
| 250 | 2661 | 200 | OSPS 250-200 | 380.1 | 7603 | 405 | 148 |
| 300 | 3167 | 100 | OSPS 300-100 | 452.4 | 4524 | 320 | 148 |
| 300 | 3167 | 150 | OSPS 300-150 | 452.4 | 6786 | 370 | 171 |
| 300 | 3167 | 200 | OSPS 300-200 | 452.4 | 9048 | 420 | 194 |
| 400 | 4008 | 100 | OSPS 400-100 | 572.6 | 5726 | 355 | 201 |
| 400 | 4008 | 150 | OSPS 400-150 | 572.6 | 8588 | 405 | 228 |
| 400 | 4008 | 200 | OSPS 400-200 | 572.6 | 11451 | 455 | 254 |
| 500 | 4948 | 100 | OSPS 500-100 | 706.9 | 7069 | 365 | 270 |
| 500 | 4948 | 150 | OSPS 500-150 | 706.9 | 10603 | 415 | 306 |
| 500 | 4948 | 200 | OSPS 500-200 | 706.9 | 14137 | 465 | 343 |
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 600 | 5987 | 100 | OLPS 600-100 | 855.3 | 8553 | 390 | 357 |
| 600 | 5987 | 150 | OLPS 600-150 | 855.3 | 12829 | 440 | 404 |
| 600 | 5987 | 200 | OLPS 600-200 | 855.3 | 17106 | 490 | 450 |
| 800 | 7939 | 100 | OLPS 800-100 | 1134.1 | 11341 | 425 | 525 |
| 800 | 7939 | 150 | OLPS 800-150 | 1134.1 | 17012 | 475 | 590 |
| 800 | 7939 | 200 | OLPS 800-200 | 1134.1 | 22682 | 525 | 654 |
| 1000 | 9930 | 100 | OLPS 1000-100 | 1418.6 | 14186 | 460 | 721 |
| 1000 | 9930 | 150 | OLPS 1000-150 | 1418.6 | 21279 | 510 | 800 |
| 1000 | 9930 | 200 | OLPS 1000-200 | 1418.6 | 28373 | 560 | 879 |
| 1500 | 15154 | 100 | OLPS 1500-100 | 2164.8 | 21648 | 545 | 1352 |
| 1500 | 15154 | 150 | OLPS 1500-150 | 2164.8 | 32472 | 595 | 1482 |
| 1500 | 15154 | 200 | OLPS 1500-200 | 2164.8 | 43296 | 645 | 1612 |
| 2000 | 20458 | 100 | OLPS 2000-100 | 2922.5 | 29225 | 615 | 2023 |
| 2000 | 20458 | 150 | OLPS 2000-150 | 2922.5 | 43837 | 665 | 2195 |
| 2000 | 20458 | 200 | OLPS 2000-200 | 2922.5 | 58450 | 715 | 2367 |
These Hydraulic Jack Specifications show why general-purpose models are trusted in demanding jobs, from construction yards to repair bays.
Each jack in this category brings solid power, predictable function, and durable design. Here are the technical details General Purpose Jack:
- Max Capacity: Most models lift between 5 to 100 tons. It depends on the job, but even the smaller jacks pack surprising force.
- Stroke Length: The piston movement (stroke) ranges from 50 mm to 250 mm, allowing for short or extended lifts as required.
- Return Type: These use a spring return system. Once the pressure is released, the piston goes back automatically without needing help.
- Cylinder Type: A single-acting cylinder is used here. It works in one direction: simple, dependable, and less prone to wear.
- Oil Capacity: This shows how much hydraulic fluid the jack holds. It usually ranges between 0.15 to 1.5 liters, depending on size and model.

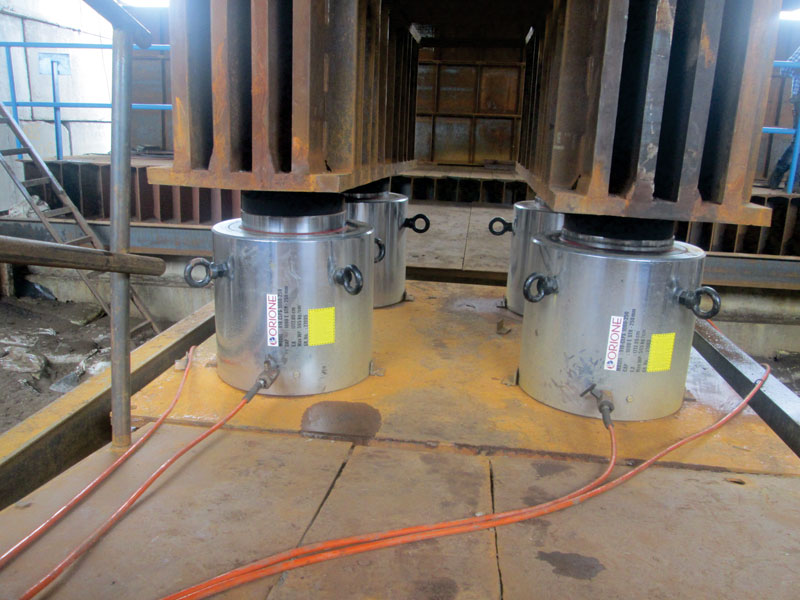

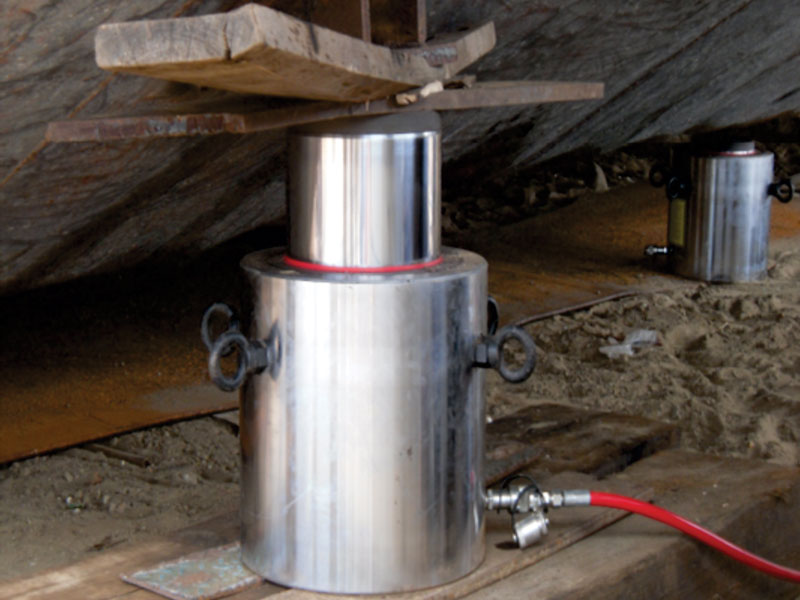

Where to Use Single Acting Jacks in Kuwait?
General Purpose Jack applications are too many. It is one of those tools that finds a place in nearly every serious industrial setup. In Kuwait, where heavy lifting is part of daily work across many sectors, these jacks prove their value in more ways than people often realize. Here are Hydraulic Jack use cases:
- Construction Lifting: On job sites across Kuwait, from Salmiya to Shuwaikh, Single Acting Hydraulic Jacks are used to lift beams, set formwork, and support foundation work. They're tough enough for outdoor heat and don't need complicated setups.
- Lifting Vehicles Maintenance: Got trucks or utility vehicles in your fleet? These single acting hydraulic jacks are tough enough for the job. If it's oilfields, workshops, construction lifting or transport yards, they slide right under low axles and get to work.
- Heavy Equipment Repair: Working on turbines, presses, or big machines? These jacks are a great fit when space is tight and time matters. Their compact size and spring return design mean you can get set up fast and lift what you need.
- Heavy Lifting Inside Plants: In factories and processing units, these jacks come in handy for aligning pipelines, shifting tanks, plant operations or setting up large machines. Built to last, they handle rough surfaces, heavy use, and tight corners.
Why Orione Hydropower for General Purpose Jacks in Kuwait?
When someone wants to buy general purpose jacks in Kuwait, they look for more than just a product. They want a hydraulic jack supplier Kuwait who knows the job, understands pressure loads, and offers tools that hold up in rough conditions. That's where Orione Hydropower comes in.
- Trusted Hydraulic Jack Supplier in Kuwait: Orione has supplied jacks across major industries in Kuwait – from refineries to metro projects. Customers like that they get direct access to proven models that work well in Gulf climates.
- Certified Hydraulic Solutions: All products go through proper testing and follow ISO standards to get durable performance. That means buyers don't have to worry about safety or strength during operation.
- Expert Support and Spare Availability: Orione doesn't stop at selling. Their team helps customers choose the right model and even assists with service queries. Plus, spares and accessories are always in stock.
For buyers who value experience, strength, and support, Orione stands out among hydraulic jack suppliers in Kuwait.
Download Product Datasheet & Brochure
Want more than just the usual product blurb? We get it that when you're working on serious lifts, you need all the facts right in your hands. That's why Orione keeps it simple and straight-up helpful for buyers in Kuwait.
- Download the General Purpose Jack Brochure Kuwait: Get all your jack questions answered in one spot. This PDF covers technical drawings, stroke sizes, height specs, and all available models. If you're planning a site upgrade or just exploring options, it's a must-have for engineers, consultants, and buyers in Kuwait.
- Full Jack Specifications PDF: Want the numbers? You've got them. From exact load ratings to stroke range and oil capacity, this sheet is built for the detail-oriented. Perfect to print, share with your team, or keep offline when the signal drops.
- Hydraulic Jack Manual: Simple, useful, and to the point—this manual shares the do's and don'ts of operation. Includes safety guidance, how to get the most out of your jack, and tips to keep it running like new after tough lifts.
Click to download technical sheet.
FAQs – General Purpose Hydraulic Jacks (Single Acting)
- Should I leave a jack under pressure after use?
No, it is not a good idea. Prolonged pressure can strain the seals and the spring return jack mechanism. You must always release the pressure and allow the piston to retract. It's a small habit that keeps your jack healthy. - What's one thing most people forget with jacks?
Lubricating the return spring! Yes, even the spring return jack needs occasional love. A drop of oil in the spring area can be used once in a while to prevent creaking or stiffness during colder months. - Can a Single Acting Jack lose power over time?
Yes, and it's not Jack's fault. Over time, air can sneak into the system, or seals can dry out. If your jack feels weaker, a quick oil top-up or seal inspection might solve it. Keep an eye on this, especially if it's been in storage for a while. - How do I actually store a jack the right way?
This one's often overlooked. The answer to how to store hydraulic jack properly is to always store it upright, clean, and fully retracted. Leaving it extended or covered in oil/dirt can cause spring fatigue or rust. Treat it like your favourite toolbox—neat and dry. - Why is my jack leaking oil around the piston?
That usually means a worn-out seal or dust creeping into the system. Wipe your jack clean after every use and check the Jack Maintenance Guide regularly. A quick reseal now can save you from a major breakdown later.
Get a Quote for Single Acting General Purpose Jacks in Kuwait
Need to hoist heavy and hustle harder? Say no more. Ready to buy Single Acting Jack Kuwait? Just get an enquiry form for no endless waits. Want specs, rates, or tea on models? Hit that request quote Hydraulic Jack button. Contact Orione, the best Hydraulic jack supplier Kuwait trusts when the load's real and time's ticking. Let's lift big together.
