Buy Threaded Ram General Purpose Jacks in Kuwait – Reliable Hydraulic Lifting
When it comes to serious lifting work in Kuwait, many professionals go with the General Purpose Hydraulic Jack, known as the Threaded Ram Jack. It's built tough for jobs on factory floors, in shipyards, and during shutdowns at refineries. Thanks to its threaded collar, it gives better load stability and lets users lock the load after lifting, taking pressure off the pump. This multi-use hydraulic jack handles pushing, pulling, and positioning too. It's especially popular for industrial lifting jacks across oil plants and power stations. You can get these Threaded hydraulic Ram Jacks from Orione Kuwait.

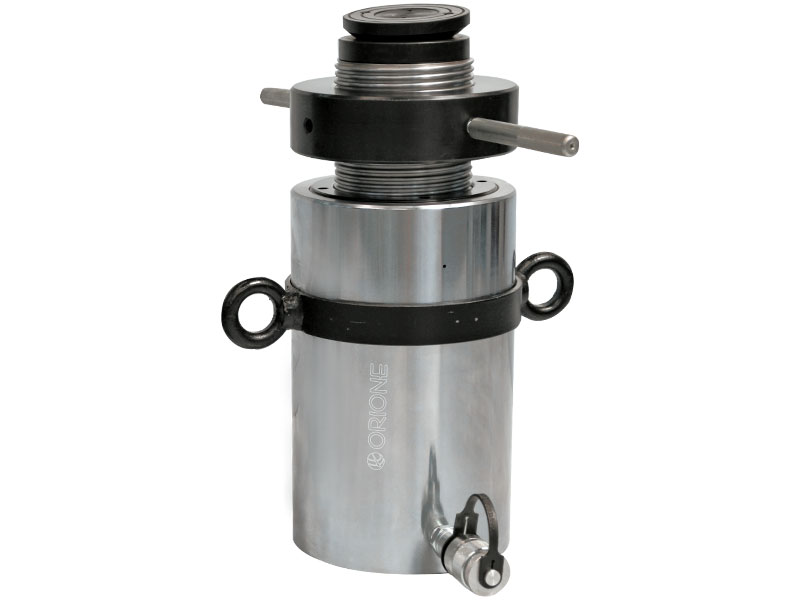

What Are General Purpose Jacks with Threaded Rams?
A General Purpose Hydraulic Jack with a Threaded Ram Hydraulic Cylinder is built for more than just lifting. It's designed to hold heavy loads in place with added safety. The threaded ram lets the user mechanically lock the load after lifting, which means the jack doesn't need to keep the pressure on the system all the time.
When it comes to steady lifting and load holding, many professionals in Kuwait count on the Hydraulic lifting solution. This type of compact lifting jack is perfect for plant maintenance, structural lifts, and heavy machine installation. What makes it stand out is the built-in collar or extension screw that lets users adjust the height easily without messing around with extra spacers.
The threaded Ram cylinder allows the load to be locked mechanically. This means it can safely hold heavy weights for longer without putting pressure on them. That's why they are often the preferred hydraulic lifting solution in shipyards, oil fields, and repair shops. People also like them because they're compact, strong, and work well in tight spots where a compact lifting jack is needed.
Key Features of Threaded Ram General Purpose Jacks
People who work with heavy loads every day appreciate gear that's dependable and easy to handle. The hydraulic jack features make them a smart pick for lifting, holding, and positioning weight in serious jobs like construction, plant maintenance, and structural repair.
Here are the best features of Threaded Ram General purpose jacks:
- Threaded Ram with Safety Lock Nut: Each jack includes a load holding ring, also known as a lock nut. No need to second-guess your lifting setup when using a Threaded Ram Hydraulic Cylinder Jack. If the load is lifted, you can simply turn the nut down to hold the weight mechanically.
- High Force Jack Capacity in Compact Design: Even the smaller models are true high-force hydraulic jacks that can lift several tons. This keeps everything steady without putting pressure on the system. These aren't just any tools. Despite that, the body stays compact and easy to position, which is helpful in tight or awkward spaces.
- Longer Holding Time Without Pressure: Since the thread locks the load, the jack can hold weight for longer periods without the pump staying connected.
- Made for Multi-Direction Use: These jacks work well not just vertically but also for pushing and pulling when used with accessories. That's why they're widely seen in industries where heavy shifting is common.
- Grooved Ram Top for Load Stability: Most come with a grooved top surface to grip the load better. This small detail adds serious value in jobs where every bit of steadiness counts.
Anyone looking at solid hydraulic jack features should know that threaded ram models are built with safety, strength, and load control in mind.
Technical Specifications – General Purpose Jacks (Threaded Ram)
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 10 | 111 | 150 | OST 10-150 | 15.9 | 239 | 245 | 4.50 |
| 15 | 167 | 150 | OST 15-150 | 23.8 | 356 | 250 | 6.50 |
| 20 | 218 | 150 | OST 20-150 | 31.2 | 468 | 260 | 9.00 |
| 25 | 270 | 150 | OST 25-150 | 38.5 | 577 | 270 | 11.30 |
| 30 | 309 | 150 | OST 30-150 | 44.2 | 663 | 275 | 14.50 |
| 50 | 550 | 150 | OST 50-150 | 78.5 | 1178 | 290 | 26.50 |
| 75 | 792 | 150 | OST 75-150 | 113.1 | 1696 | 295 | 37.00 |
| 100 | 1077 | 150 | OST 100-150 | 153.9 | 2309 | 305 | 56.00 |
| 150 | 1589 | 150 | OST 150-150 | 227 | 3405 | 325 | 86.00 |
| 200 | 2199 | 150 | OST 200-150 | 314.2 | 4712 | 340 | 110.00 |
| 250 | 2661 | 150 | OST 250-150 | 380.1 | 5702 | 350 | 134.00 |
| 300 | 3167 | 150 | OST 300-150 | 452.4 | 6786 | 370 | 176.00 |
| 400 | 4008 | 150 | OST 400-150 | 572.6 | 8588 | 405 | 240.00 |
| 500 | 4948 | 150 | - | 706.86 | 10603 | - | 0.00 |
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 10 | 111 | 150 | OSTS 10-150 | 15.9 | 239 | 255 | 4.7 |
| 15 | 167 | 150 | OSTS 15-150 | 23.8 | 356 | 265 | 6.7 |
| 20 | 218 | 150 | OSTS 20-150 | 31.2 | 468 | 275 | 9.3 |
| 25 | 270 | 150 | OSTS-25-150 | 38.5 | 577 | 285 | 11.7 |
| 30 | 309 | 150 | OSTS 30-150 | 44.2 | 663 | 290 | 15 |
| 50 | 550 | 150 | OSTS 50-150 | 78.5 | 1178 | 305 | 27 |
| 75 | 792 | 150 | OSTS 75-150 | 113.1 | 1696 | 320 | 38 |
| 100 | 1077 | 150 | OSTS 100-150 | 153.9 | 2309 | 325 | 57 |
| 150 | 1589 | 150 | OSTS 150-150 | 227 | 3405 | 350 | 88.5 |
| 200 | 2199 | 150 | OSTS 200-150 | 314.2 | 4712 | 365 | 114 |
| 250 | 2661 | 150 | OSTS 250-150 | 380.1 | 5702 | 385 | 139 |
| 300 | 3167 | 150 | OSTS 300-150 | 452.4 | 6786 | 405 | 183.5 |
| 400 | 4008 | 150 | OSTS 400-150 | 572.6 | 8588 | 445 | 252 |
| 500 | 4948 | 150 | OSTS 500-150 | 706.86 | 10603 | 465 | 363 |
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 600 | 5987 | 150 | OLTS 600-150 | 855.3 | 12829 | 495.00 | 495 |
| 800 | 7939 | 150 | OLTS 800-150 | 1134.1 | 17012 | 535.00 | 731 |
| 1000 | 9930 | 150 | OLTS 1000-150 | 1418.6 | 21279 | 570.00 | 970 |
| 1500 | 15154 | 150 | OLTS 1500-150 | 2164.8 | 32472 | 660.00 | 1810 |
| 2000 | 20458 | 150 | OLTS 2000-150 | 2922.5 | 43837 | 750.00 | 2705 |
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 10 | 111 | 50 | OSPS 10-50 | 15.9 | 80 | 145 | 2.6 |
| 10 | 111 | 100 | OSPS 10-100 | 15.9 | 159 | 195 | 3.4 |
| 10 | 111 | 150 | OSPS 10-150 | 15.9 | 239 | 245 | 4.2 |
| 10 | 111 | 200 | OSPS 10-200 | 15.9 | 318 | 295 | 4.9 |
| 15 | 167 | 50 | OSPS 15-50 | 23.8 | 119 | 155 | 4.6 |
| 15 | 167 | 100 | OSPS 15-100 | 23.8 | 238 | 205 | 5.6 |
| 15 | 167 | 150 | OSPS 15-150 | 23.8 | 356 | 255 | 6.6 |
| 15 | 167 | 200 | OSPS 15-200 | 23.8 | 475 | 305 | 7.6 |
| 20 | 218 | 50 | OSPS 20-50 | 31.2 | 156 | 160 | 5.1 |
| 20 | 218 | 100 | OSPS 20-100 | 31.2 | 312 | 210 | 6.3 |
| 20 | 218 | 150 | OSPS 20-150 | 31.2 | 468 | 260 | 7.7 |
| 20 | 218 | 200 | OSPS 20-200 | 31.2 | 623 | 310 | 8.9 |
| 25 | 270 | 50 | OSPS 25-50 | 38.5 | 192 | 170 | 7 |
| 25 | 270 | 100 | OSPS 25-100 | 38.5 | 385 | 220 | 8.7 |
| 25 | 270 | 150 | OSPS 25-150 | 38.5 | 577 | 270 | 10.3 |
| 25 | 270 | 200 | OSPS 25-200 | 38.5 | 770 | 320 | 12.1 |
| 30 | 309 | 50 | OSPS 30-50 | 44.2 | 221 | 175 | 9.4 |
| 30 | 309 | 100 | OSPS 30-100 | 44.2 | 442 | 225 | 11.9 |
| 30 | 309 | 150 | OSPS 30-150 | 44.2 | 663 | 275 | 13.9 |
| 30 | 309 | 200 | OSPS 30-200 | 44.2 | 884 | 325 | 15.9 |
| 50 | 550 | 50 | OSPS 50-50 | 78.5 | 393 | 190 | 16 |
| 50 | 550 | 100 | OSPS 50-100 | 78.5 | 785 | 240 | 19.5 |
| 50 | 550 | 150 | OSPS 50-150 | 78.5 | 1178 | 290 | 23 |
| 50 | 550 | 200 | OSPS 50-200 | 78.5 | 1571 | 340 | 27 |
| 75 | 792 | 50 | OSPS 75-50 | 113.1 | 565 | 205 | 22.9 |
| 75 | 792 | 100 | OSPS 75-100 | 113.1 | 1131 | 255 | 27.9 |
| 75 | 792 | 150 | OSPS 75-150 | 113.1 | 1696 | 305 | 33.9 |
| 75 | 792 | 200 | OSPS 75-200 | 113.1 | 2262 | 355 | 38.9 |
| 100 | 1077 | 50 | OSPS 100-50 | 153.9 | 770 | 205 | 31 |
| 100 | 1077 | 100 | OSPS 100-100 | 153.9 | 1539 | 255 | 38.5 |
| 100 | 1077 | 150 | OSPS 100-150 | 153.9 | 2309 | 305 | 45.5 |
| 100 | 1077 | 200 | OSPS 100-200 | 153.9 | 3079 | 355 | 53 |
| 150 | 1589 | 50 | OSPS 150-50 | 227 | 1135 | 225 | 56 |
| 150 | 1589 | 100 | OSPS 150-100 | 227 | 2270 | 275 | 67 |
| 150 | 1589 | 150 | OSPS 150-150 | 227 | 3405 | 325 | 78 |
| 200 | 2199 | 50 | OSPS 200-50 | 314.2 | 1571 | 240 | 74.5 |
| 200 | 2199 | 100 | OSPS 200-100 | 314.2 | 3142 | 290 | 90 |
| 200 | 2199 | 150 | OSPS 200-150 | 314.2 | 4712 | 340 | 105.5 |
| 250 | 2661 | 100 | OSPS 250-100 | 380.1 | 3801 | 305 | 114 |
| 250 | 2661 | 150 | OSPS 250-150 | 380.1 | 5702 | 355 | 131 |
| 250 | 2661 | 200 | OSPS 250-200 | 380.1 | 7603 | 405 | 148 |
| 300 | 3167 | 100 | OSPS 300-100 | 452.4 | 4524 | 320 | 148 |
| 300 | 3167 | 150 | OSPS 300-150 | 452.4 | 6786 | 370 | 171 |
| 300 | 3167 | 200 | OSPS 300-200 | 452.4 | 9048 | 420 | 194 |
| 400 | 4008 | 100 | OSPS 400-100 | 572.6 | 5726 | 355 | 201 |
| 400 | 4008 | 150 | OSPS 400-150 | 572.6 | 8588 | 405 | 228 |
| 400 | 4008 | 200 | OSPS 400-200 | 572.6 | 11451 | 455 | 254 |
| 500 | 4948 | 100 | OSPS 500-100 | 706.9 | 7069 | 365 | 270 |
| 500 | 4948 | 150 | OSPS 500-150 | 706.9 | 10603 | 415 | 306 |
| 500 | 4948 | 200 | OSPS 500-200 | 706.9 | 14137 | 465 | 343 |
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 600 | 5987 | 100 | OLPS 600-100 | 855.3 | 8553 | 390 | 357 |
| 600 | 5987 | 150 | OLPS 600-150 | 855.3 | 12829 | 440 | 404 |
| 600 | 5987 | 200 | OLPS 600-200 | 855.3 | 17106 | 490 | 450 |
| 800 | 7939 | 100 | OLPS 800-100 | 1134.1 | 11341 | 425 | 525 |
| 800 | 7939 | 150 | OLPS 800-150 | 1134.1 | 17012 | 475 | 590 |
| 800 | 7939 | 200 | OLPS 800-200 | 1134.1 | 22682 | 525 | 654 |
| 1000 | 9930 | 100 | OLPS 1000-100 | 1418.6 | 14186 | 460 | 721 |
| 1000 | 9930 | 150 | OLPS 1000-150 | 1418.6 | 21279 | 510 | 800 |
| 1000 | 9930 | 200 | OLPS 1000-200 | 1418.6 | 28373 | 560 | 879 |
| 1500 | 15154 | 100 | OLPS 1500-100 | 2164.8 | 21648 | 545 | 1352 |
| 1500 | 15154 | 150 | OLPS 1500-150 | 2164.8 | 32472 | 595 | 1482 |
| 1500 | 15154 | 200 | OLPS 1500-200 | 2164.8 | 43296 | 645 | 1612 |
| 2000 | 20458 | 100 | OLPS 2000-100 | 2922.5 | 29225 | 615 | 2023 |
| 2000 | 20458 | 150 | OLPS 2000-150 | 2922.5 | 43837 | 665 | 2195 |
| 2000 | 20458 | 200 | OLPS 2000-200 | 2922.5 | 58450 | 715 | 2367 |
For engineers, site supervisors, and maintenance heads in Kuwait, knowing the Threaded Ram Jack specifications upfront helps them choose the right fit. These jacks are built for serious lifting and load-holding, and their structure is designed with purpose. Below is a breakdown of key hydraulic cylinder specs that matter on the job.
- Load Capacity: It ranges from 10 to 200 tons and is made for heavy machinery and structure lifting.
- Stroke Length: 50 mm to 300 mm, depending on model. Longer strokes are available for tall lifts.
- Lock Nut Height: Varies by capacity. It helps hold the manual load after the lift.
- Return Type: Mostly spring return. There is no need to manually retract, so it saves effort and time.
- Body Material: The General Purpose Hydraulic Jack uses high-grade alloy steel, so it stands up to repeated lifting in harsh conditions.
- Thread Type: The Threaded Ram Hydraulic Cylinder includes precision-cut external threads.
- Oil Port Position: Depending on how tight your workspace is, you'll love the option of a bottom or side-mounted oil port.
- Plunger Surface: Some models come with a grooved plunger surface. It offers extra grip and control when the load gets heavy.
People often miss checking stroke and lock nut details. However, these two make a huge difference when long-holding applications are used.

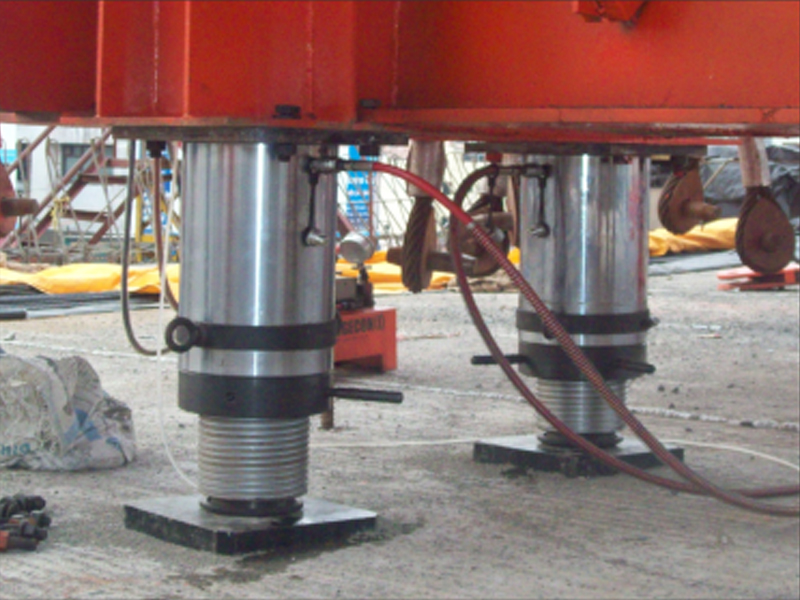

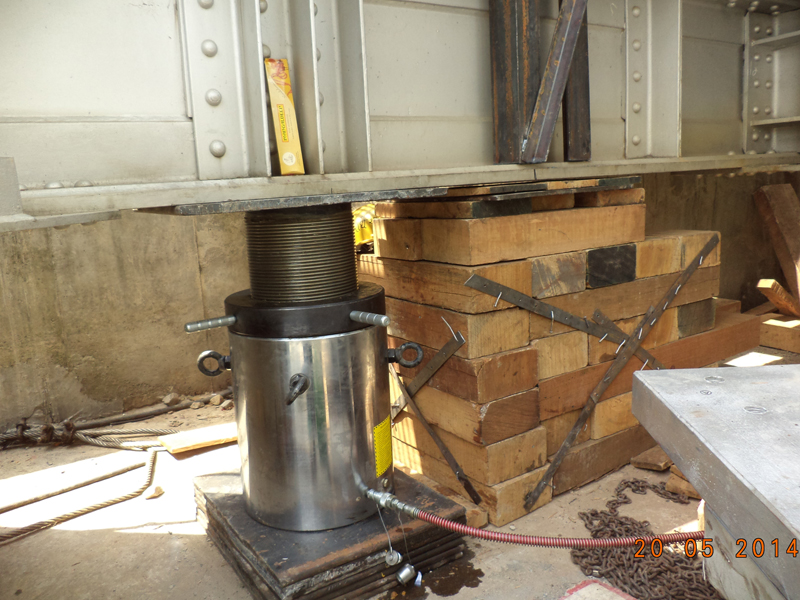

Applications of Threaded Ram Jacks in Kuwait
Across Kuwait, Hydraulic Jack uses Kuwait stretch far beyond basic lifting. The threaded ram applications make these jacks a regular tool in industries that deal with weight, pressure, and time-sensitive lifting tasks. These aren't just for workshops — they're trusted in the toughest industrial spots.
- Heavy-Duty Construction Lifting: Contractors in Kuwait use threaded ram jacks for raising beams, bridge sections, and pre-cast elements. The mechanical lock nut gives extra peace of mind during prolonged lifts, especially when cranes are not in play.
- Oil & Gas Field Maintenance: In refineries and petrochemical zones, these jacks support pipelines, vessel alignment, and structural realignment during shutdowns. The load holding feature is critical during long procedures when constant hydraulic pressure isn't ideal.
- Power Plant Overhauls: During turbine or generator servicing, threaded jacks help in heavy duty construction lifting and holding huge assemblies. The grooved ram top prevents slipping during positioning.
- Shipyard Repairs: Shipbuilders and repair crews count on these for hull support and drydock operations. Their compact body helps work under tight vessel sections.
- Machinery Positioning in Factories: From cement plants to steel mills, these jacks assist in shifting, leveling, industrial maintenance or anchoring heavy machines during setup or repairs.
Finding a dependable hydraulic jack supplier in Kuwait has become an easy task, as many industries now count on Orione General Purpose Jacks. Our jacks are built to support Kuwait's demanding lifting tasks in power plants and pipeline projects.
- Kuwait's Spots: You'll spot Orione General Purpose Jacks at work in oil fields, shipyards, and refinery zones across Kuwait. These jacks handle scorching heat and gritty environments like it's just another day. That's why they're trusted jack manufacturer where equipment needs to perform, not pause.
- Know-How That Counts: You don't just get a product; you get people who care. The Orione team knows their jacks, and they guide you through selection, usage, and accessories. A good jack is even better when you've got real support.
- Trusted Jack Manufacturer for Kuwait Projects: Along with Ahmadi and Shuaiba, Orione's name comes up often when people talk about a Kuwait lifting equipment supplier they can rely on. Strong builds, straightforward service, and a reputation earned project after project.
- Stocked and Ready: Waiting weeks for a jack? Not with Orione. This Hydraulic Jack Supplier in Kuwait keeps a reliable stock of popular sizes and tonnage. Whether it's a quick-fix plant job or a major lift, they've got the right gear ready to ship.
Download Threaded Ram Jack Datasheet & Brochure
Those who need exact numbers before buying will find the Hydraulic Jack Datasheet Kuwait very handy. It includes stroke details, tonnage options, thread specs, and cylinder dimensions. The Download Brochure also shares jack catalog, model charts and usage notes. This technical data PDF helps buyers make smart, clear comparisons.
FAQs – General Purpose Threaded Ram Jacks
- How to use a Threaded Ram Jack safely?
Start by placing the jack on a flat, solid surface. Once the hydraulic pump lifts the load, rotate the lock nut downward until it meets the cylinder body. This holds the load mechanically, even if pressure drops later. It's an extra layer of support many don't use correctly. It is one of the most common Threaded Ram Jack FAQs. - What is the purpose of the threaded section?
The threads on the RAM allow a load securing lock nut to be engaged. This adds safety precautions during prolonged holds and reduces stress on the hydraulic system. It also allows minor height adjustments after lifting. - Can the jack be used horizontally?
Yes, with the right saddles or mounting plates. Many site workers in Kuwait use it for pushing and positioning in horizontal setups, not just vertical lifting. - How does the retraction process work?
Most models have a spring return system. Once the pump pressure is released, the plunger retracts on its own. Users should always remove the load before releasing pressure to prevent damage. - Do threaded ram jacks need regular maintenance?
Yes, but it's simple. Check for oil leaks, clean the threads after use, and store the jack upright. Regular cleaning avoids debris buildup that could affect lock nut function.
Get a Quote for General Purpose Jacks in Kuwait
Are you looking to buy threaded ram jacks in Kuwait, or do you need exact pricing on hydraulic lifting equipment? Here's the easy way in. Just hit "Enquire now" or send a message to request hydraulic jack quote today.
- Custom Quote in Minutes: Whether it's a single unit or bulk order, the team sends hydraulic lifting equipment price lists.
- Expert Suggestions: Based on tonnage, stroke, and job type, they help pick the right jack—so you don't pay for what you won't use.
- No Guessing on Price: Get exact figures, not rough estimates. The shared hydraulic lifting equipment price is final and transparent.
- Ready Stock for Kuwait: Jacks are stocked locally or dispatched from nearby, meaning faster delivery across Kuwait.
Get a quote now and make the right move.
