Buy Pancake Jacks with Plain Ram in Kuwait

When tight space leaves no room for bulky tools, Pancake Jacks with Plain Ram step in as the go-to choice. Built with a low-height body and wide base, these low-profile hydraulic jacks are for heavy machines, bridges, or inside plant maintenance pits. What many don’t realise is just how strong they are despite their size. In Kuwait, contractors looking for a compact lifting jack that holds weight steady during short lifts often turn to these. If someone’s searching for Hydraulic Pancake Jacks in Kuwait, this model keeps things simple and gets the job done.

What Are Pancake Jacks with Plain Ram?

If space is tight but heavy lifting can't wait, a Plain Ram Hydraulic Jack does the heavy work without taking up room. These jacks are built low to the ground with a flat top, which is why many in Kuwait call them Pancake Jacks. They're easy to slip under beams, plates, or heavy machines where taller jacks just won’t fit. But they don't need threads on the ram. That means Pancake Jacks in Kuwait are lighter, quicker to position, and often used when a locking nut isn't needed.

These flat ram hydraulic cylinders are known for their wide base and stable lifting. They're popular in shipyards, refineries, and during equipment installation. Many don’t realise how much lifting power these compact tools offer. As compact lifting equipment, they make tricky lifting jobs easier without asking for extra space.

Hydraulic Hand Pumps Steel

Technical Specifications of Pancake Jacks - Plain Ram

Not all jobs need tall tools. Sometimes, the toughest lifting happens in the tightest spaces, and that’s exactly where a Plain Ram Hydraulic Jack proves its worth. This compact jack is made for lifting jobs in plants, bridges, and machine foundations.

Here’s what makes it different:

The operating pressure? A solid 700 bar. That’s the kind of pressure serious lifting jobs demand, without the bulk.

You’ll find the stroke length between 25 mm and 50 mm, just right for controlled movement when space is limited.

The Plain Ram jack load capacity ranges from 10 tons to 150 tons, depending on the model. All that muscle packed into a body that fits where others can’t.

Its oil capacity may look small on paper (from under 1 litre to 5+ litres), but it’s calculated precisely to match the jack’s size and pressure.

And the effective area of the ram? That’s where the power really hits. These jacks are engineered to deliver full force through every inch of contact.

For anyone working in narrow spaces who needs a jack, this is the one they trust. The Hydraulic jack specifications may look minimal, but the performance? That’s anything but small.

Applications of Plain Ram Pancake Jacks in Kuwait

If heavy loads are stuck in corners, Plain Ram Pancake Jacks show up with quiet strength. Built low but working hard, these compact tools are making big moves in Kuwait’s industrial spaces. Along with job sites and repair yards, their power is shown through where space is tight more than height.

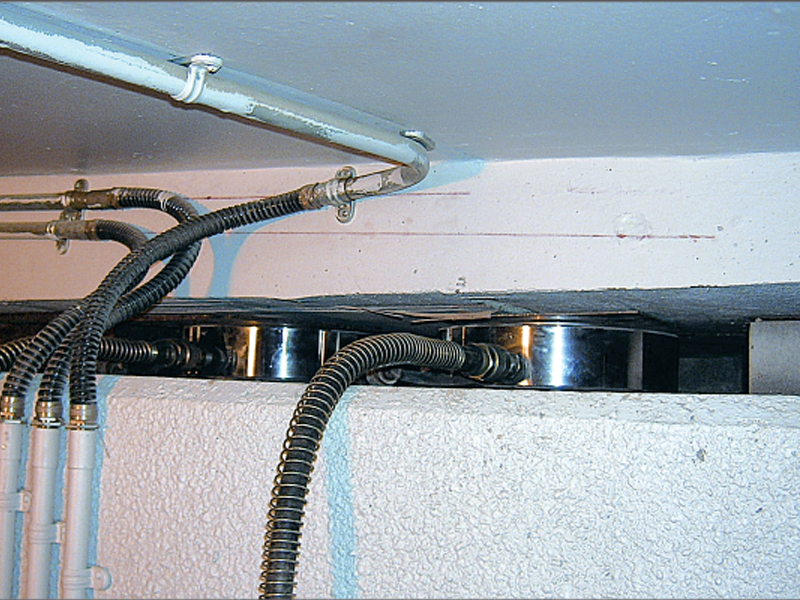

1. Bridge Support and Deck Lifting

In Kuwait, where infrastructure maintenance is always on the radar, these Plain Ram Jack applications are widely seen under bridges. Their low height makes them perfect for slipping into narrow cavities under bridge decks. Contractors use them to carefully lift concrete slabs for inspection, bearing changes, or alignment checks.

2. Machine Alignment in Manufacturing Plants

One small tilt can throw operations off track. That’s why technicians count on these jacks for machine alignment. Their slow and stable lift lets workers tweak positioning without shaking things up. Along with food processing and petrochemical plants, they help align machines down to the millimeter.

3. Shipyard and Vessel Maintenance

In dry docks and shipyards across Kuwait, engineers need tools that can handle enormous weights but still fit into awkward spots. That’s where Industrial lifting jacks in Kuwait like these come in. If it's lifting hull sections or supporting rudder repairs, these pancake jacks support without taking up much deck space.

4. Confined Space Lifting on Offshore Rigs

Confined space lifting is one of the biggest headaches offshore. You’ve got heavy steel, limited visibility, and almost no wiggle room. These jacks are popular among offshore rig operators in Kuwait for equipment repositioning and skid system lifts, because they do their job without needing extra clearance.

5. Equipment Realignment

If plants go quiet during shutdowns, it’s the perfect time to realign or replace key equipment. These pancake jacks are used to lift turbines, compressors, or pipelines that are too heavy for manual work. The load gets lifted, adjustments are made, and downtime gets minimized.

6. Structural Repairs Under Heavy Loads

For civil engineers working on foundations or base plates in existing structures, these jacks let them temporarily lift support columns or beams. Without disturbing the load too much, they make room for shims, grout, or alignment fixes. It makes them one of the smartest Plain Ram Jack applications on the market.

Capacity 10 - 200 ton / Stroke 10 mm / Max. Working Pressure 700 bar
Capacity
(ton)
Capacity
(kN)
Stroke
(mm)
Model Effective area
(cm2)
Oil cap.
(cc)
Closed height
(mm)
Wt. (Approx.)
(kg)
Suitable pump
10 111 10 OLPVL 10-10 15.9 16 30 1.2 OHP-1P4-2-1.5
20 218 10 OLPVL 20-10 31.2 32 35 2.2 OHP-1P4-2-1.5
30 309 10 OLPVL 30-10 44.2 44 40 3 OHP-1P4-2-1.5
50 550 10 OLPVL 50-10 78.5 79 50 6 OHP-1P4-2-1.5
100 1077 10 OLPVL 100-10 153.9 154 70 14 OHP-1P4-2-1.5
150 1589 10 OLPVL 150-10 227 227 75 22 OHP-3P4-2-3
200 2199 10 OLPVL 200-10 314.2 315 80 32 OHP-3P4-2-3

Why Buy Plain Ram Pancake Jacks from Orione Hydropower Kuwait?

If lifting jobs in Kuwait leave no room for shortcuts, contractors and engineers turn to Orione Hydropower Plain Ram Jacks. These are trusted by the ones who deal with tonnes of pressure daily.

1. Built for Kuwait’s Harsh Job Sites

Sand, heat, and humidity are common on local sites, and that’s where Orione Hydropower Plain Ram Jacks shine. The design holds up well during long hours in rough surroundings.

2. Fast Response and Readily Available Models

Need it this week? Orione is known for quick turnarounds on hydraulic lifting solutions in Kuwait. They keep standard sizes in stock so that engineers don’t lose time chasing suppliers.

3. Backed by Application Know-How

Orione isn’t just a seller, they’re a trusted lifting equipment supplier that understands what your project needs. Along with jack sizing and placement, their team helps at every step to avoid lift mishaps.

4. International Safety Standards

Each jack has been made with internationally accepted pressure ratings. This makes them certified hydraulic jacks that contractors can rely on. It is for operations in oil, gas, and infrastructure work.

Download Plain Ram Pancake Jack Datasheet & Brochure

Curious about what a Plain Ram Pancake Jack can really do? Grab the Plain Ram Pancake Jack brochure Kuwait and get all the good stuff in one place. Along with the real product specifications PDF and a clear operation manual, it tells you how much it lifts and what it takes to run it right. Also, get ready to help before you even pick up the phone. It is made for those who like to know exactly what they’re working with

.

FAQs – Plain Ram Pancake Jacks

1. How to use a Plain Ram Pancake Jack correctly?

A Plain Ram Pancake Jack is made for low-clearance lifting, so getting it into position is simple. But these jacks don’t have a threaded lock. So once the lift is done, you’ll need a separate support like blocks or cribbing before starting any work underneath.

2. What’s the best way to store it after use? After a job, proper storage can seriously extend the jack’s life. Retract the ram fully, clean off any dust or grease, and store it upright in a dry spot. Avoid tossing it in with tools that might knock against the cylinder.

3. Are there any special maintenance for hydraulic jacks?

Definitely. Regular maintenance for hydraulic jacks includes checking for oil leaks, keeping the seals clean, and changing the hydraulic oil at recommended intervals. For pancake models, inspect the flat surface before every use.

4. Can it be used on uneven ground?

Using a Plain Ram Pancake Jack on an uneven surface is risky. It’s always safer to place it on a steel plate or a hardwood block to spread the load. If you're working on asphalt or gravel, always prep the area first. These jacks need a stable base to stay true to their design.

5. What safety tips should be followed?

Here’s where things get serious. Never crawl under a load that’s only supported by a pancake jack. These jacks are meant to lift, not to hold. Use jack stands or cribbing once the height is reached. Also, avoid side loads, over-extension, or using damaged hoses. Always follow the usage guidelines that come in the manual, even if you've used hydraulic jacks for years.

Request a Quote for Plain Ram Pancake Jacks in Kuwait

Want to buy Plain Ram Pancake Jacks in Kuwait but don’t want to wait around for days? Orione Hydropower makes it super easy. Just send a quick inquiry form with what you need like capacity, stroke, or how many jacks. You can also contact a hydraulic jack supplier in Kuwait directly. They’ll guide you without the tech talk. If you’re ready to get a quote for a hydraulic jack, you’re honestly just one step away.
