Hollow Ram Jacks Single Acting Manufacturers in Kuwait

Buy Hollow Ram Single Acting Jacks in Kuwait – Versatile Hydraulic Lifting Tools

When you’re managing demanding lifting tasks, having the right tools makes all the difference. That’s where our Hollow Ram Jack Kuwait range steps in. Designed with a centre hole, these Single Acting Hollow Hydraulic Jack models are built for jobs that need both pushing and pulling, such as tensioning rods, cables, or anchor bolts, with complete reliability.

These hydraulic jacks with centre hole deliver high force. All this is while remaining easy to handle. With single acting operation, the hydraulic pressure extends the ram, and it retracts smoothly by spring force, making your work faster and simpler. Their robust construction ensures they perform well under extreme loads. Also, there is a compromise in safety.

These jacks are used at various places. Starting from the simple construction sites to the industries, the applications are many. These high force hollow jacks are engineered to support your team with precision and confidence. At Orione Hydropower, we offer you quick delivery in Kuwait. So, you are not required to wait for your work to get started.

Explore our range of Single Acting Hollow Hydraulic Jack models today and experience efficient lifting solutions tailored to your project needs.

So., let us explore more details here.

Technical Specifications

Capacity 10 - 100 ton / Stroke 50 - 150 mm / Max. Working Pressure 700 bar

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	110	50	OSH 10-50	15.7	79	150	3.7
10	110	75	OSH 10-75	15.7	118	175	4.2
10	110	100	OSH 10-100	15.7	157	200	4.7
20	231	50	OSH 20-50	33	165	155	8
20	231	100	OSH 20-100	33	330	205	10.5
20	231	150	OSH 20-150	33	495	255	12.5
30	298	50	OSH 30-50	42.6	213	175	10.5
30	298	75	OSH 30-75	42.6	320	200	11.5
30	298	100	OSH 30-100	42.6	426	225	12.5
30	298	150	OSH 30-150	42.6	639	275	14.5
50	550	75	OSH 50-75	78.5	589	210	21
50	550	100	OSH 50-100	78.5	785	235	22
60	605	75	OSH 60-75	86.4	648	225	26
60	605	100	OSH 60-100	86.4	864	250	28.5
60	605	150	OSH 60-150	86.4	1296	300	33
100	990	75	OSH 100-75	141.4	1060	245	45
100	990	100	OSH 100-100	141.4	1414	270	48.5

What Is a Hollow Ram Jack and How It Works?

A Hollow Ram Hydraulic Jack is a specialised hydraulic tool. It is designed for versatile lifting, pushing, and pulling applications. Unlike standard jacks, it features a centre hole that runs through its piston. This design allows tensioning rods or cables to pass through, enabling both pushing and pulling operations with one tool.

Design and Structure

Centre Hole Piston: These center hole jacks or hollow piston jacks have a hollow cylinder allowing rods, cables, or bolts to pass through the ram.
Single Acting Operation: As a Single Acting Jack, hydraulic pressure is used. It helps to extend the piston. At the same time, it stays as an internal spring that retracts when pressure is released. This ensures simple operation and faster setup.
High Strength Build: It is made from high-grade alloy steel. This is known for durability. It also makes it easy to handle extreme loads safely.

How It Works

Hydraulic Extension: The fluid pressure pushes the piston. This is done in the outward direction to lift or push loads.
Spring Return Retraction: Once the job is complete, the hydraulic pressure is released. It allows the spring to retract the piston back to its original position.
Pulling Application: This is also used as a hydraulic pull jack. There are the tensioning rods or cables that pass through the centre hole. This is very effective for pulling force.

Application Suitability

Though there are various tasks where you can use this, a few notable once are as follows:

Tensioning anchor bolts and cables
Pulling and pushing operations in construction or maintenance
Removal or installation of pins, bushings, or sleeves

With their unique design, Hollow Ram Hydraulic Jacks provide unmatched versatility in projects requiring both pulling and pushing, making them indispensable in heavy industry, construction, and infrastructure work.

Industrial Applications of Hollow Ram Jacks in Kuwait

Industrial Hydraulic Jack Kuwait solutions, like hollow ram jacks, play a crucial role across sectors that demand powerful and versatile lifting, pushing, and pulling tools. Their unique hollow piston design and strong force capacity make them essential for various heavy-duty tasks.

Construction and Infrastructure: Pre-stressing concrete, lifting structures, bridge construction, and heavy installations.
Oil & Gas: Pipeline alignment, flange separation, and maintenance shutdowns.
Railways: Track maintenance and bridge tensioning tasks.

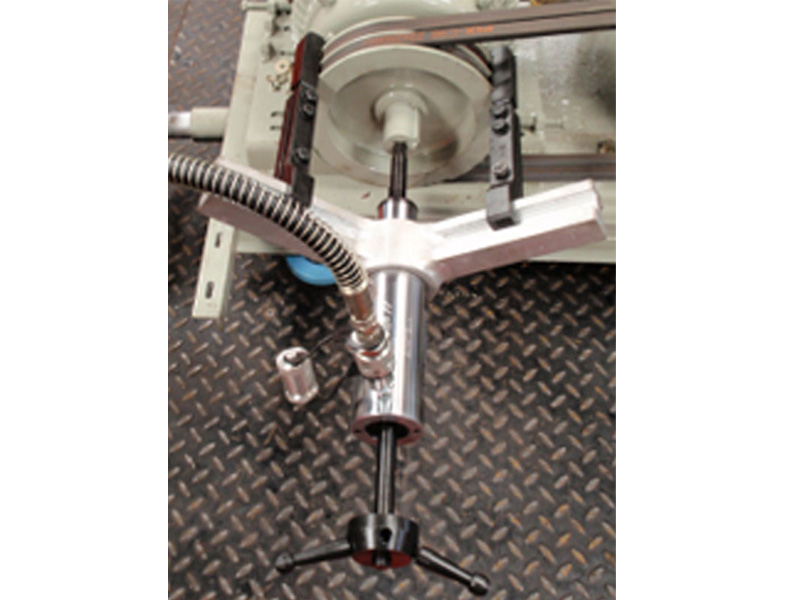

Industrial Maintenance: Pulling bushings, shafts, sleeves for machinery repairs.
Marine and Shipbuilding: Tensioning and alignment during ship assembly.

Key Benefits of Using Hollow Ram Jacks

1. Versatile Jacking Capability: Allows both pulling and lifting through the centre hole design.
2. Ideal for Tensioning Applications: Great for pre-stressing, anchor bolt tightening, and structural rods in bridges.
3. Multiple Uses with One Tool: Combines functions of lift and pull jacks in one compact unit.
4. Compact Yet Powerful: Ideal for confined areas while delivering high performance.
5. Reliable Single Acting Mechanism: Hydraulic extension and spring return enhance safety and control.

Why Choose Orione Hydropower for Hollow Ram Jacks in Kuwait?

Quality You Can Trust: Made from high-grade alloy steel for heavy use.
ISO Certified Systems: All products meet international standards.
Wide Product Range: Multiple tonnage and stroke options for every industry.
Custom Solutions Available: Tailored for unique project needs.
Fast Delivery in Kuwait: Local stock for urgent project needs.
Technical Support: Expert help with product selection, setup, and troubleshooting.

Download Hollow Ram Jack Brochure & Datasheet
Looking for detailed specifications to evaluate offline? Download our Hollow Jack Brochure Kuwait today. This technical datasheet hollow jack PDF includes comprehensive product details, dimensions, operating parameters, and application guidelines to support your project planning. The brochure also acts as a handy product manual, ensuring safe and efficient usage.

Click below for an instant PDF download and equip your team with the technical insights needed to choose the right hollow ram jack for your needs.

FAQs – Hollow Ram Jacks (Single Acting)

1. What is a Hollow Ram Jack used for? Hollow ram jacks are designed for both lifting and pulling tasks. Their centre-hole use allows rods, cables, or anchor bolts to pass through, making them ideal for tensioning applications, structural lifting, and equipment pulling in construction, oil & gas, and infrastructure projects.
2. How to Use Hollow Ram Jack safely? Ensure the jack is placed on a flat, stable surface. Connect to a compatible hydraulic pump, insert the rod or cable through the center hole if using it for pulling setup, and operate the pump to extend the ram. Always follow manufacturer guidelines for load limits and setup to prevent accidents.
3. What maintenance is required for Hollow Hydraulic Jacks FAQs? Regularly clean the jack after use, check for oil leaks, inspect seals, and store it in a dry area to prevent corrosion. Routine maintenance ensures safe operation and extends product life.
4. How should I store my Hollow Ram Jack? Store your jack in an upright position in a clean, dry place away from moisture. Keep dust caps fitted on ports to avoid contamination and ensure proper storage conditions.
5. Can Hollow Ram Jacks be used as pulling setups? Yes, they are often used as pulling setups. The centre-hole use design allows them to act as hydraulic pull jacks for removing bushings, pins, or tensioning cables efficiently.

Get a Quote for Hollow Ram Jacks in Kuwait

Planning to buy Hollow Ram Jack Kuwait for your upcoming projects? Request quote Hollow Hydraulic Jack solutions from Orione Hydropower today. Our team provides fast pricing, technical specifications, and delivery timelines tailored to your needs. Whether you want to enquire jacking system options or contact jack supplier for expert guidance, we’re here to support you.

Get in touch now to secure the right hollow ram jack for your operations in Kuwait.
