Flat Single Acting Hydraulic Jacks in UAE – Compact & Powerful Lifting
Are you looking for a good-performing flat jack? Well, then, Orione Hydropower is going to be the best solution for you. It offers a high-performance Flat Jack UAE range built for precision lifting in low-clearance environments.
All the Single Acting Hydraulic Jack UAE models are designed to offer strength and durability. The compact design is such that it can work through narrow spaces with ease. This makes them perfect for use in various industries in the UAE.
The most common usages are across the industrial, construction, and maintenance works. These are spaces where accuracy, durability, and resilience are all very important. Each jack is engineered as a low profile hydraulic jack to ensure the best outcome.
Our single action flat jack is designed with a focus on your needs. We aim to offer you reliability in work with powerful force and stable operation.
Our high capacity flat jack UAE is perfect for all sorts of environments. They can withstand pressure and ensure that there is no hassle in your work anytime. This makes them perfect for various industrial needs and a stand out proposition.
What Is a Single Acting Flat Hydraulic Jack?
A Single Acting Flat Jack UAE is known not just for design but for performance. It is compact in design. Further, the low-height hydraulic jack is designed to lift heavy loads. This helps very much in areas with limited vertical clearance.
It’s also known as a hydraulic lifting pad or compact hydraulic jack. Additionally, all these aspects are the reasons why top industries prefer this a lot.
How Hydraulic Jack Works for Lifting Heavy Load in UAE
- Operates through a single port cylinder using hydraulic pressure for extension.
- Retracts automatically via an internal spring once the pressure is released.
- Known for its low-profile design and reliable lifting power.
Flat Hydraulic Cylinder UAE
- The cylinder receives fluid through one port only.
- Lifting happens in one direction (extension), with return handled by spring force.
- Simplifies setup and minimizes the need for complex controls.
Common Applications
- Equipment maintenance and alignment
- Bridge and structural lifting
- Industrial machinery positioning
- Shipbuilding and offshore support
This efficient design makes the Single Acting Flat Jack UAE a must-have tool. If you are looking for portable and high-force lifting tasks, this is the solution.
Key Features of Our Flat Jacks – Single Acting
Orione’s Flat Jack features UAE are tailored for demanding industrial environments. These are the places where strength, reliability, and compactness matter most. Each jack is precision-built. Hence, they work so well under pressure with ease of use and minimal maintenance.
Single Acting Jack Benefits
If you are planning to get one, then you must know the following Single Acting Jack Benefits:
- Low profile design allows use in tight or restricted spaces.
- High tonnage capacity for lifting heavy machinery and structures.
- Durable construction using high-grade materials ensures long-term performance.
- Corrosion resistance for longevity in harsh or outdoor conditions.
- Single port operation with spring return for quick, controlled retraction.
- Lightweight and portable for ease of transport and setup.
These features make our single-acting flat jacks ideal for maintenance, construction, shipbuilding, and more. Also, backed by Orione Hydropower’s trusted engineering expertise in the UAE, we offer designs that can deliver service at the best.
Technical Specifications – Flat Jacks Single Acting
Orione’s Flat Jack Specifications UAE are designed for precision, reliability, and safe operation in tight lifting conditions. Our Single Acting Hydraulic Jack Specs cover a wide range of capacities and dimensions. Hence, they are great to suit industrial demands.
Capacity 5 - 200 ton / Stroke 8 - 16 mm / Max. Working pressure 700 bar
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 5 | 56 | 8 | OSF 5-8 | 8 | 6 | 35 | 0.6 |
| 10 | 111 | 12 | OSF 10-12 | 15.9 | 19 | 45 | 1.3 |
| 20 | 218 | 12 | OSF 20-12 | 31.2 | 37 | 55 | 2.6 |
| 30 | 309 | 12 | OSF 30-12 | 44.2 | 53 | 60 | 3.8 |
| 50 | 550 | 16 | OSF 50-16 | 78.5 | 126 | 65 | 6.2 |
| 75 | 792 | 16 | OSF 75-16 | 113.1 | 180 | 80 | 11.8 |
| 100 | 1077 | 16 | OSF 100-16 | 153.9 | 247 | 85 | 15.1 |
| 150 | 1589 | 16 | OSF 150-16 | 227 | 363 | 100 | 27 |
| 200 | 1985 | 16 | OSF 200-16 | 283.5 | 454 | 115 | 40.7 |

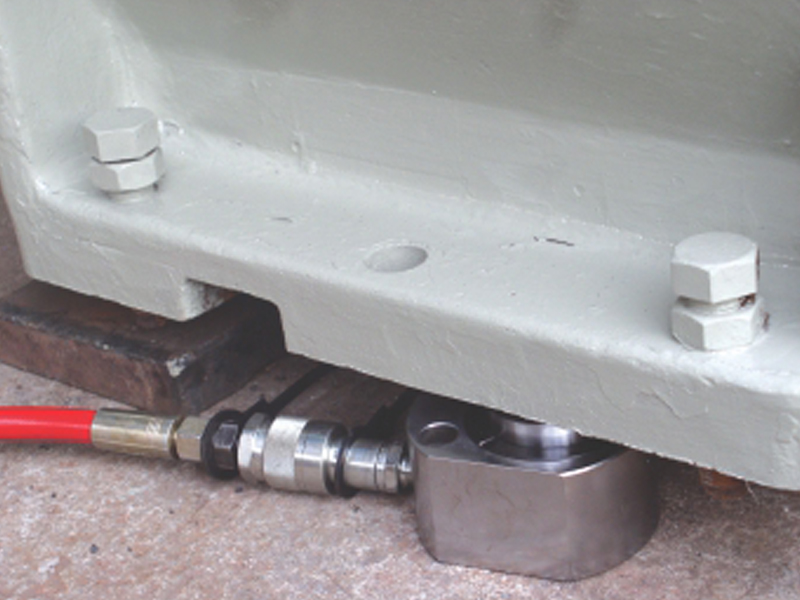

Applications of Flat Jacks Single Acting in UAE
Orione Hydropower’s Flat Jack Applications UAE are tailored to meet the demanding needs of UAE companies. They are used in infrastructure, construction, oil & gas, and marine sectors across the region.
With compact height and high tonnage capacity, our jacks deliver efficient lifting. This means where space is limited and precision is critical, we work best.
Key Single Acting Jack Uses in UAE
- Bridge support during load testing and structural alignment
- Structural lifting for heavy machinery, precast segments, and steel frames
- Plate lifting in shipbuilding and industrial fabrication units
- Foundation jacking for leveling, retrofitting, and base stabilization
Built for rugged use, these flat jacks are trusted across UAE job sites for their safety, speed, and reliability. The single acting jack uses are many. Each of these is engineered to handle extreme loads while ensuring smooth operation in confined areas.
This is a primary reason why most companies add them as a vital part of the UAE’s industrial toolkit.
Why Choose Orione Hydropower’s Flat Jacks Single Acting in UAE?
Orione Hydropower is a leading Flat Jack Supplier UAE, offering high-performance lifting solutions designed for precision, durability, and ease of use. Our Single Acting Hydraulic Jack UAE range is engineered to meet the needs of industries operating in tight, high-pressure environments.
We combine robust product design with responsive regional support to ensure dependable results on every job.
Key Reasons to Choose Orione Hydropower
- Local stock UAE ensures quick availability and minimal downtime
- Fast delivery across the UAE for urgent project needs
- Durable design built to perform in harsh industrial environments
- Dedicated technical support UAE for product selection and after-sales service
- Proven reliability across construction, infrastructure, and heavy industry sectors
With Orione Hydropower, you get efficient, regionally supported solutions trusted by professionals across the UAE. And the support from our experts can ensure that no matter what you get the jack, we are there to guide and support you.
Download Datasheet – Flat Jack Single Acting
Access the complete Flat Jack Datasheet UAE to explore detailed technical drawing, specifications, and performance data. Download our Single Acting Jack PDF to support procurement and technical planning.
This product brochure is essential for engineers, buyers, and project managers across UAE industries. With this, you can get all the insights required to make the right investment decisions.
FAQs – Flat Jacks Single Acting
These Flat Jack FAQ UAE points cover essential Single Acting Jack Questions, helping buyers make informed decisions while ensuring safe, long-term usage.
- What is the operating pressure of Orione Hydropower’s flat jacks?
Our flat jacks operate at 700 bar (10,000 psi), providing powerful performance for industrial lifting tasks. Always use compatible hydraulic equipment to maintain safe operating pressure. - How do I maintain a single acting flat jack?
Routine maintenance includes cleaning the jack after each use, checking for oil leaks, and inspecting seals and fittings. This ensures longer life and reliable performance under pressure. - What are common usage tips for flat jacks?
Place the jack on a flat, stable surface, avoid overloading beyond rated capacity, and always retract before repositioning. Use proper hydraulic fluid to ensure efficient lifting. - Are safety precautions necessary during operation?
Yes. Never stand under a lifted load, use personal protective gear, and ensure the jack is properly centered beneath the load to avoid slipping or tilting. - Where can I find more technical details?
You can download our Flat Jack Datasheet UAE or the Single Acting Jack PDF, which includes technical drawing, performance data, and detailed specifications for your project needs.
Request a Quote – Flat Jacks Single Acting UAE
Looking to buy flat jack UAE with trusted quality and fast delivery? Orione Hydropower offers durable single acting jacks designed for demanding lifting tasks. Contact us to explore specifications, availability, and technical details.
For accurate single acting jack price UAE, our team provides customized hydraulic jack pricing UAE based on your project needs. Get a quote today and contact our supplier desk for quick, professional assistance across the UAE.
