Hollow Ram Jacks Double Acting in UAE – Precision Lifting & Tensioning
Are you looking for a strong and flexible way to lift things in tough industrial settings? Hollow Ram Jacks, especially the Double Acting Hollow Jack UAE, are made to satisfy the toughest needs with speed and dependability. These new tools, called Centre Hole Hydraulic Jacks, have a unique hollow ram design that lets rods, cables, and other parts flow through. This makes them great for tensioning, pulling, and lifting tasks where regular jacks don't work as well. These jacks are different from regular ones because they have a Dual Action Cylinder mechanism that lets you regulate the force and direction of both the extension and retraction strokes. This makes sure that it works smoothly in situations where bidirectional force is important, including in building, maintenance, and industrial settings all across the UAE. People in the UAE respect Industrial Hollow Jacks for their strength, flexibility, and ability to work in tight or complicated places. Hollow Ram Jack UAE solutions are built to last and operate well, and they are used in important projects where precision, durability, and smooth operation are a must. Professionals who want the best in every lift choose them because of their innovative design and strong construction.
What Is a Double Acting Hollow Ram Jack?
Not only does a Double Acting Hollow Jack have a distinctive look, but it also works better than other jacks in tough situations. This Hollow Hydraulic Cylinder UAE is made to lift and pull things safely, even in places where regular jacks don't work well. Because its ram is hollow, wires, rods, and other parts can travel through it. This makes it perfect for certain industrial jobs.
Technical Specifications – Hollow Ram Jacks (Double Acting)
Capacity 10 - 150 ton / Stroke 50 - 150 mm / Max. Working Pressure 700 bar
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 10 | 103 | 75 | ODH 10-75 | 14.7 | 110 | 195 | 5.5 |
| 10 | 103 | 100 | ODH 10-100 | 14.7 | 147 | 220 | 6 |
| 20 | 202 | 50 | ODH 20-50 | 28.9 | 144 | 185 | 12 |
| 20 | 202 | 100 | ODH 20-100 | 28.9 | 289 | 235 | 14.5 |
| 20 | 202 | 150 | ODH 20-150 | 28.9 | 433 | 285 | 17 |
| 30 | 309 | 50 | ODH 30-50 | 44.2 | 221 | 200 | 13.5 |
| 30 | 309 | 100 | ODH 30-100 | 44.2 | 442 | 250 | 16 |
| 30 | 309 | 150 | ODH 30-150 | 44.2 | 663 | 300 | 19 |
| 50 | 528 | 100 | ODH 50-100 | 75.4 | 754 | 260 | 28 |
| 60 | 641 | 75 | ODH 30-75 | 91.6 | 687 | 245 | 27.5 |
| 60 | 641 | 100 | ODH 30-100 | 91.6 | 916 | 270 | 30 |
| 60 | 641 | 150 | ODH 30-150 | 91.6 | 1373 | 320 | 34.5 |
| 100 | 1093 | 75 | ODH 100-75 | 156.1 | 1171 | 270 | 53 |
| 100 | 1093 | 100 | ODH 100-100 | 156.1 | 1561 | 295 | 57 |
| 150 | 1649 | 150 | ODH 150-150 | 235.6 | 3534 | 350 | 95 |
How It Works
This jack has dual hydraulic ports, one on each side of the cylinder, so hydraulic fluid may flow in and out from both sides. The two-way force jack employs hydraulic pressure to drive the ram both ways, unlike single-acting devices, which only move it in one direction. This makes sure that the movement is regulated in both directions. The dual-action mechanism of the Precision Lifting Jack makes lifting exact and repeatable, which is necessary for precision industrial work.
Hollow Ram Jack Explanation
The hollow ram is what makes this jack special. It lets things flow through the middle of the cylinder, which is very useful for operations like wire tensioning, making structural changes, and other tasks where space or alignment is very important. Because it is built so well, it will last and work well even in the hardest conditions, which is why it is so popular in the UAE.
Common Applications
- Used to move and adjust big machinery with great accuracy.
- This is necessary for lifting and sustaining big buildings while they are being built or fixed.
- The hollow ram lets cables through, which makes it perfect for these kinds of jobs.
- Gives controlled power to move and line up big machines in factories and industries.
The Double Acting Hollow Jack UAE is the best jack for you if you need one that can do a lot of different things with power and accuracy. Professionals in many fields need this because of its innovative design and reliable performance.
Top Features of Our Hollow Ram Jacks – Double Acting
Orione's Hollow Jack Features UAE are built to handle the hardest problems in the industrial world. Our Double Acting Cylinder UAE is a reliable choice in situations where accuracy, power, and strong performance are all required. Each jack is made with precision to last through many cycles and be as reliable as industrial-grade equipment. They work perfectly under pressure with little maintenance.
Double Acting Jack Benefits
- Push/Pull Operation provides force in both directions for diverse applications.
- Controlled retraction is used to provide quick and accurate movement in both directions.
- High Cycle durability designed for continuous heavy-duty usage in tough environments.
- Internal Stop Rings to prevent overextension for increased safety.
- High capacity and stroke available in capacities ranging from 10-150 tons and stroke lengths of 50-250 mm.
- Robust industrial design to withstand high pressure while requiring minimal maintenance.
Applications of Double Acting Hollow Ram Jacks in UAE

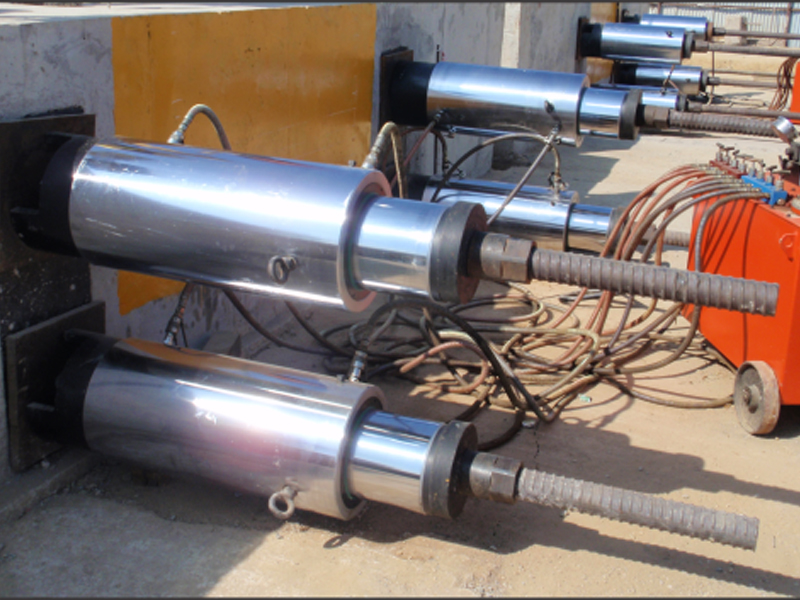

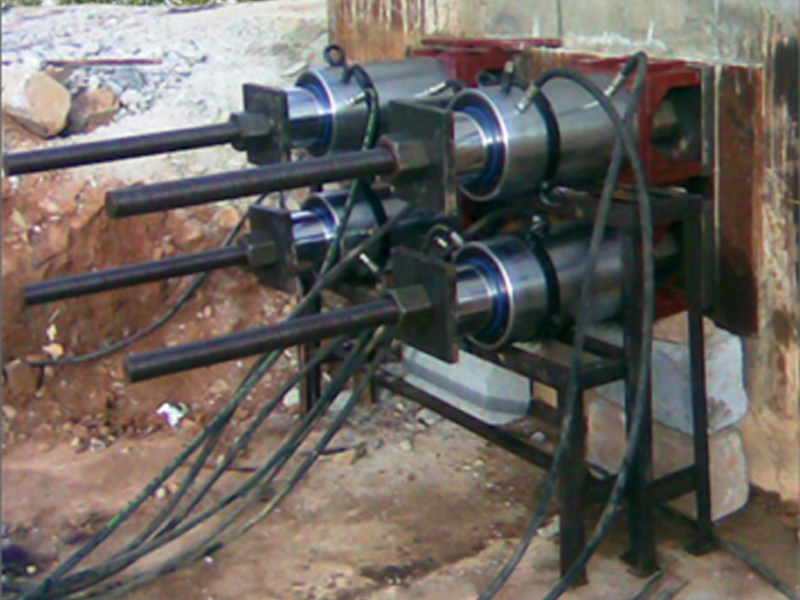

- Post-tensioning reinforced concrete structures by putting and releasing stress on tendons.
- Bolt tensioning provides stable, consistent clamping in heavy equipment and assemblies.
- Testing Rigs measures foundation strength during pile load testing for infrastructure projects.
- Pipe Pulling enables the installation and removal of pipes and wires in restricted areas.
- Structural lifting involves supporting and lifting massive components during bridge and building construction.
Why Choose Orione Hydropower’s Hollow Ram Jacks in UAE?
- Local UAE availability ensures rapid product availability and minimizes downtime.
- Fast UAE Delivery with quick dispatch and delivery throughout the area.
- Heavy-Duty Design to withstand severe industrial settings.
- Custom sizes available for tailored solutions for every project requirement.
- Dedicated field support UAE with expert technical and after-sales support.
- Proven reliability trusted by the UAE's leading industries.
Beyond items, we offer skilled field support in UAE, from product selection to after-sales service, ensuring you receive the best solution and continuing technical help. Choose Orione Hydropower for proven dependability, robust equipment, and a dedication to customer satisfaction that fosters long-term trust in the UAE market.
Download Datasheet – Double Acting Hollow Jack
Explore the whole Hydraulic Jack Datasheet UAE for extensive technical drawings, specs, and performance data. Download our Hollow Jack PDF UAE to help with procurement and technical planning. This product brochure is vital for engineers, buyers, and project managers from various UAE sectors. This provides you with all of the information needed to make sound financial decisions.
FAQs – Double Acting Hollow Hydraulic Jacks
- What is the difference between single and double-acting hollow jacks?
Single-acting jacks utilize hydraulic pressure to extend and springs or gravity to retract; double-acting types employ hydraulic pressure for both extension and retraction, resulting in quicker, more controlled operation. - What is the oil requirement for double-acting hollow jacks?
Double-acting hollow jacks require appropriate hydraulic oil, which varies in capacity depending on the device. For best results, use only clean, high-quality oil. - What is the usual operating pressure on these jacks?
The operating pressure for Orione's double acting hollow jacks is up to 700 bar, assuring reliable performance in demanding industrial applications. - What are the primary applications of double-acting hollow jacks in the UAE?
In construction and heavy industries, they are commonly used for pile load testing, post-tensioning, cable splicing, bolt tensioning, and structural lifting purposes. - Where can I get repair instructions for double-acting hollow jacks?
Each jack comes with repair instructions, and Orione's skilled field support in the UAE may give guidance and technical assistance as needed.
