Buy Hollow Ram Jacks Single Acting in UAE – Versatile Lifting & Pulling
Are you seeking for a powerful and versatile lifting solution in the UAE? Hollow Ram Jack UAE is designed to perform very well in tough industrial applications. These Single Acting Hollow Jack UAE models are particularly built to handle large weights with accuracy, thanks to its distinctive center hole jack UAE design, which provides for direct access via rods or cables during lifting and positioning operations. Their center hole design makes them ideal for pulling and pushing jack applications, ensuring versatility across a wide range of scenarios. Hollow ram jacks are well-known for their ability to function in challenging environments with limited space and heavy-duty requirements. Their single-acting mechanism provides continuous force with easy operation, making them popular for tensioning jack applications in industries such as construction, steel mills, and maintenance services. These jacks distinguish themselves from others by being able to lift and steer weights at the same time using the center hole jack UAE feature. Whether your project requires tensioning cables, pushing or pulling equipment, or lifting large components with limited clearance, the Hollow Ram Jack UAE series is a reliable and efficient solution tailored to the UAE's dynamic industrial landscape.
What Is a Single Acting Hollow Ram Jack?
A Single Acting Hollow Ram Jack UAE differs from other standard jacks in that it is designed to offer strength and flexibility in tough industrial situations. This type has a unique center-hole hydraulic cylinder that allows rods, cables, and other components to flow directly through its core. This makes it ideal for specific tasks such as precise alignment and pulling tension jack operations. The spring return hollow jack mechanism ensures that once hydraulic pressure is applied to extend the ram, it will immediately retract once the pressure is withdrawn, therefore improving safety and simplifying operations.
Technical Specifications – Hollow Ram Jacks (Single Acting)
Capacity 10 - 100 ton / Stroke 50 - 150 mm / Max. Working Pressure 700 bar
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 10 | 110 | 50 | OSH 10-50 | 15.7 | 79 | 150 | 3.7 |
| 10 | 110 | 75 | OSH 10-75 | 15.7 | 118 | 175 | 4.2 |
| 10 | 110 | 100 | OSH 10-100 | 15.7 | 157 | 200 | 4.7 |
| 20 | 231 | 50 | OSH 20-50 | 33 | 165 | 155 | 8 |
| 20 | 231 | 100 | OSH 20-100 | 33 | 330 | 205 | 10.5 |
| 20 | 231 | 150 | OSH 20-150 | 33 | 495 | 255 | 12.5 |
| 30 | 298 | 50 | OSH 30-50 | 42.6 | 213 | 175 | 10.5 |
| 30 | 298 | 75 | OSH 30-75 | 42.6 | 320 | 200 | 11.5 |
| 30 | 298 | 100 | OSH 30-100 | 42.6 | 426 | 225 | 12.5 |
| 30 | 298 | 150 | OSH 30-150 | 42.6 | 639 | 275 | 14.5 |
| 50 | 550 | 75 | OSH 50-75 | 78.5 | 589 | 210 | 21 |
| 50 | 550 | 100 | OSH 50-100 | 78.5 | 785 | 235 | 22 |
| 60 | 605 | 75 | OSH 60-75 | 86.4 | 648 | 225 | 26 |
| 60 | 605 | 100 | OSH 60-100 | 86.4 | 864 | 250 | 28.5 |
| 60 | 605 | 150 | OSH 60-150 | 86.4 | 1296 | 300 | 33 |
| 100 | 990 | 75 | OSH 100-75 | 141.4 | 1060 | 245 | 45 |
| 100 | 990 | 100 | OSH 100-100 | 141.4 | 1414 | 270 | 48.5 |
How It Works
The jack has a single-acting hydraulic jack tool that is ideal for lifting, tensioning, or pulling jobs that need a central route. Its center-hole hydraulic cylinder enables rods, cables, and other parts to flow through the jack while it is in action. When hydraulic pressure is delivered via the input port, the jack expands and exerts force only in one direction. When the pressure is removed, a spring return mechanism retracts the ram automatically, making it ideal for repeated or space-constrained procedures. This spring return hollow jack design is suitable for applications that need both pushing and pulling, as well as accurate alignment.

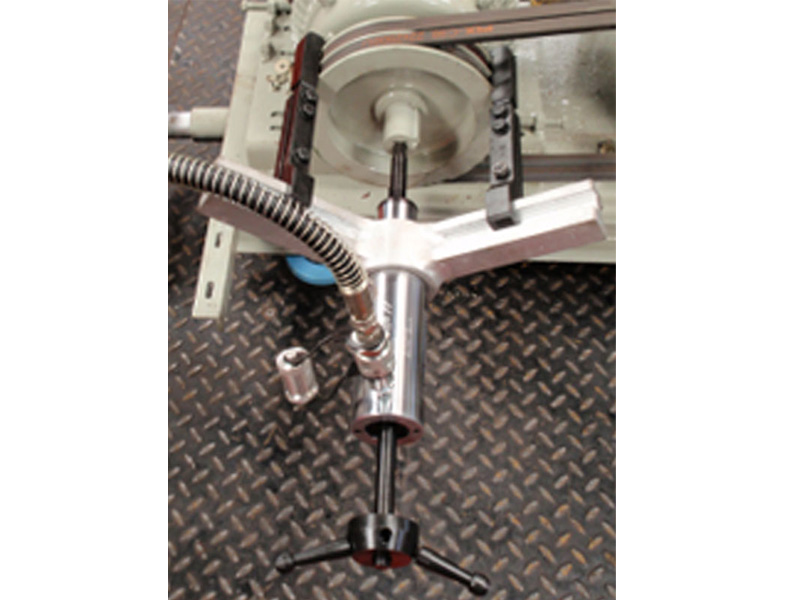

Common Applications
- Wire rope pulling and prestressing
- Pulley removal
- Tensioning and testing
- Pulling and lifting
- Shaft extraction
Industries in the UAE that want portable, high-force solutions should certainly choose the Single Acting Hollow Ram Jack UAE because of its sturdy structure, reliable lifting power, and innovative center-hole hydraulic cylinder design.
Key Features of Our Hollow Ram Jacks – Single Acting
Designed to tackle the hardest industrial problems, Orione's Hollow Jack Features UAE combine strength, accuracy, and adaptability in one solid package. Our Center Hole Jack UAE range is unique in features that it lets rods, cables, or other components pass through the central bore, so perfect for tensioning, pulling, pushing, and exact alignment jobs.
Hollow Ram Jack Benefits
- Center hole jack UAE is perfect for tensioning, pulling, and exact alignment jobs.
- Spring return mechanism allows quick and under control retraction every time.
- High force capacity for heavy-duty lifting and pushing.
- Lightweight design makes the jacks easy to move and set up.
- Corrosion-resistant finish perfect for outdoor or hostile conditions
- Plain RAM design provides a smooth, unthreaded surface for simple lifting and pushing.
These characteristics make our single-acting hollow ram jacks the perfect fit for maintenance, construction, shipbuilding, and more. Supported by the dependable technical knowledge of Orione Hydropower in the UAE, our jacks will provide maximum performance every time.
Applications of Hollow Ram Jacks in UAE
- Post-tensioning
- Cable pulling and splicing
- Maintenance lifting
- Anchor pulling
- Flange spreading
- Bolt tensioning
- Shaft extraction
Why Choose Orione Hydropower for Hollow Ram Jacks in UAE?
- Local procurement in-stock UAE guarantees little downtime and speedy availability
- Fast delivery UAE for pressing project requirements
- Strong design and premium build to function in demanding industrial surroundings
- UAE dedicated technical assistance for product selection and after-sales maintenance
- Tested dependability in heavy industries, infrastructure, and construction
Download Datasheet – Hollow Ram Jack (Single Acting)
View the whole Hollow Jack Datasheet UAE to investigate comprehensive technical drawing, specs, and performance data. Get our Center Hole Cylinder PDF UAE to help with technical planning and procurement assistance.
FAQs – Hollow Ram Jack (Single Acting)
- What is a single acting hollow ram jack?
A Hollow Ram Jack (Single Acting) hydraulic tool with a center hole allows the passage of rods, cables, or bolts for flexible pushing and pulling. - Where are Hollow Ram Jacks most often used?
In construction, oil and gas, bridge building, and heavy industrial sectors. - What benefits over conventional hydraulic cylinders?
Push/pull via center hole, reduced bending strain, less space needed. - What are usual measurements for Orione's jacks?
10 to 200 tons, stroke 50 to 300 mm, 700 bar pressure, collar threads, mounting holes, safety features. - Why pick Orione as UAE supplier?
Quality build, fast delivery, in-stock units, expert consultation, and full technical support.
Request a Quote – Hollow Ram Jack (Single Acting)
Searching for premium Hollow Ram Jacks UAE with consistent performance and quick delivery? Contact Orione Hydropower to request a quote customized to your lifting capacity, stroke, and job application needs.
