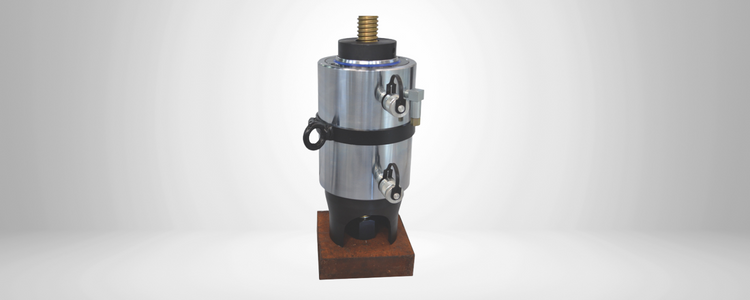

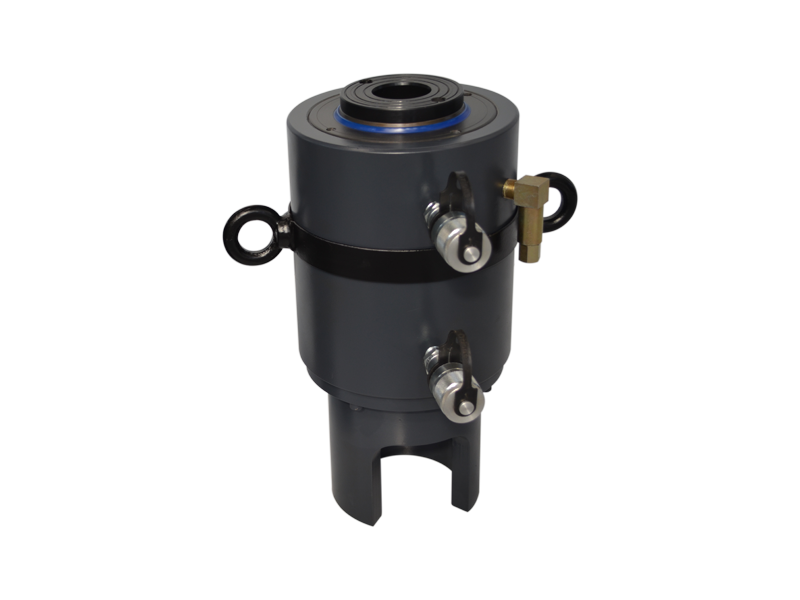

Bar Stressing Jacks

Features / Application :

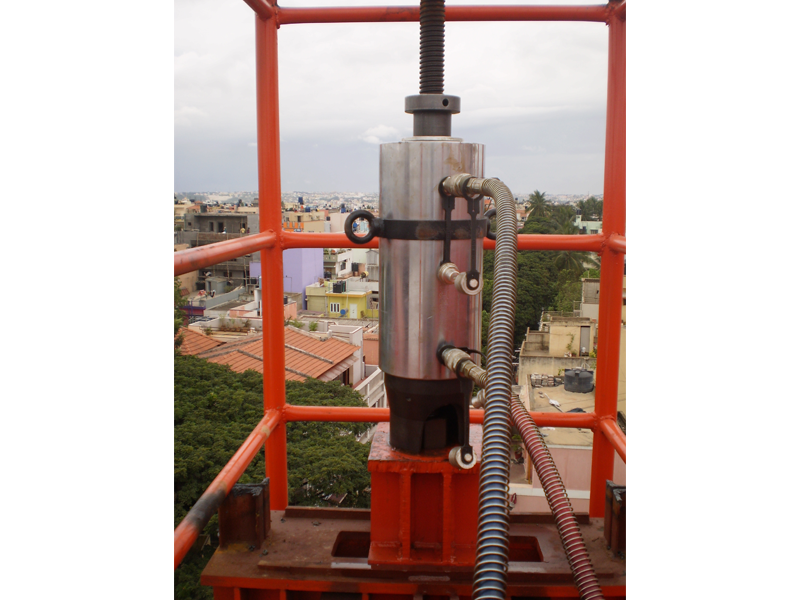

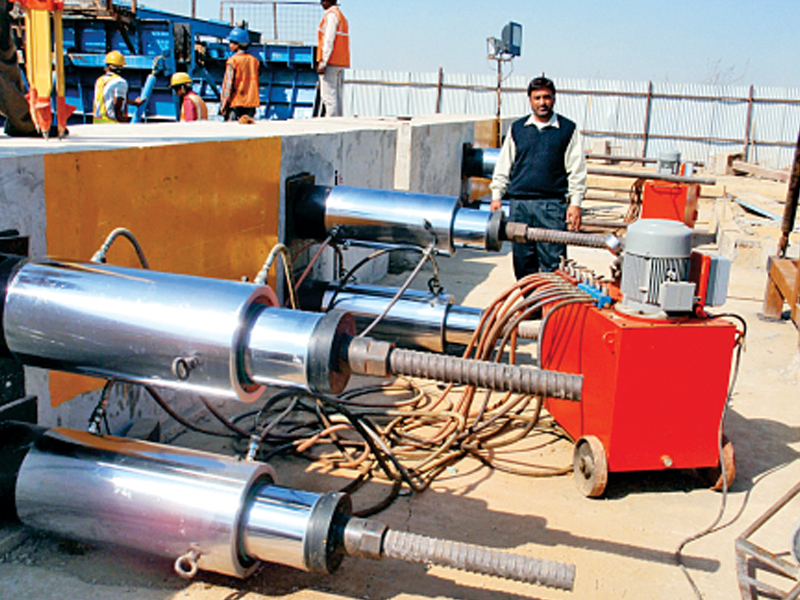

Used with high tensile threaded bars for pulling and locking

Short strokes for lifting and aligning segments as well as for temporary stressing

Long strokes for pulling and locking multiple tendons of concrete structure

The threaded bars are stressed as structural members too

Capacity : 80 - 400 ton | Stroke : 100 mm

Note : We have designed, manufactured and supplied a wide range of customized Bar Jacks in Steel as well as Alloy Alluminium – 60t, 150t, 160t, 200t & 300t

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	C’hole dia. (mm)	Wt. (Approx.) (kg)
80	846	100	OBS 80-100	130.2	1302	427	80	70
120	1285	100	OBS 120-100	183.6	1840	530	81	97
180	1853	100	OBS 180-100	285	2850	486	91	151
400	4082	100	OBS 400-100	742.2	7422	690	100	433
