Low Height Jacks Single Acting Manufacturers in Saudi Arabia

Low Height Jacks Single Acting Overview

Orione Hydropower’s Low Height Jacks are engineered for compact lifting jobs where standard jacks won’t fit. Ideal for construction, refineries, and heavy machinery in Saudi Arabia. With spring return mechanism and plain ram design, these jacks ensure safe and efficient lifting.

Low Height Jacks Technical Specifications

Orione Hydropower’s Low Height Jacks Single Acting are built to deliver strength, precision, and durability in confined working spaces. Below are the detailed specifications that define their performance, reliability, and fit for industrial needs.

Design and Mechanism

Each jack uses a single acting hydraulic system with a spring return mechanism. This allows the ram to extend under pressure and retract when pressure is released. This ensures smooth operation. Further, no threaded attachments make it easy to use in narrow gaps.

Load Capacity and Pressure

These jacks are available in the following manner:

• Capacities ranging from 5 tons to 200 tons
• Stroke lengths between 8 mm and 60 mm.

The Hydraulic Jack Load Capacity is supported by a maximum working pressure of 700 bar. Hence, these are suitable for high-load operations across industries.

Dimensions and Weight

The Compact Jack Dimensions ensure easy fitment in restricted spaces:

• OSL 10-30: 15.9 cm² area, 48 cc oil capacity, 90 mm height, 2.3 kg
• OSL 50-60: 78.5 cm² area, 471 cc oil capacity, 125 mm height, 11 kg
• OSL 200-60: 314.2 cm² area, 1885 cc oil capacity, 200 mm height, 66 kg

All models come with mounting holes and are designed to be used vertically or horizontally.

USPs to Know

1. Built for Confined Spaces: Simple design and collapsible features make them perfect for confined spaces.
2. High Pressure, Low Effort: Allow you to get optimum performance with less pump energy for efficiency.
3. Durable and Industry-Ready: Made from a material that is of high quality and corrosion-resistant.

These Single Acting Jack Technical Details make Orione Hydropower a trusted name. These Hydraulic Low Height Jacks are hence well-known across Saudi Arabia and beyond.

Low Height Jacks Features and Benefits

Designed to get under the tightest spots, these jacks are the go-to solution for demanding lifts with very little room to spare. If you’re working in confined industrial setups or under massive structures, this is what you want in your hands.

Single Acting Jack Features That Set the Bar High

Ultra-Compact Design

With closed heights starting from just 90 mm, these jacks fit easily beneath equipment and platforms. So, no extra lifting or rearrangement needed.

Spring Return Mechanism

There is a plain ram and an internal spring. This means the jack extends and releases pressure on its own. Hence, it is quick, clean, and lowers manual workload.

Durable Hydraulic Build

Crafted from corrosion-resistant, high-grade steel, these durable hydraulic jacks are ready for tough environments. This can be construction zones, shipyards, or power plants.

Precision Stroke Range

With stroke lengths between 30 mm and 60 mm, users get the exact movement needed for tasks like beam alignment, load pushing, or machinery leveling.

Advantages of Low Height Jacks You Can Count On

Massive Power, Minimal Footprint

From 10 tons to 200 tons capacity, these jacks deliver serious strength in a compact form—ideal for bridge bearings, presses, or large industrial assemblies.

Lightweight and Mobile

The OSL 10-30 model weighs just 2.3 kg. This means you can carry it anywhere without any special support needed.

Reliable Oil Dynamics

Effective areas up to 227 cm² and oil volumes up to 1362 cc ensure smooth pressure control and consistent lifting performance.

Fast Setup, No Fuss

We all like quick installations. This jack is all about the same. No need to wait for complex tools. Just install and use in minutes.

Built for Tight Deadlines

Quick setup and spring return save time. No complex reconfiguration. Just push, lift, and move on.

No Problem Even If There Are Tough Applications

These jacks shine under heavy-duty tasks, railway repair, mining machinery alignment, heavy press setups, or construction plate lifting. Wherever you’re forced to work with limited clearance, these jacks don’t just fit, they perform.

For teams in Saudi Arabia demanding durable hydraulic jacks for perfection, these are your best pick.

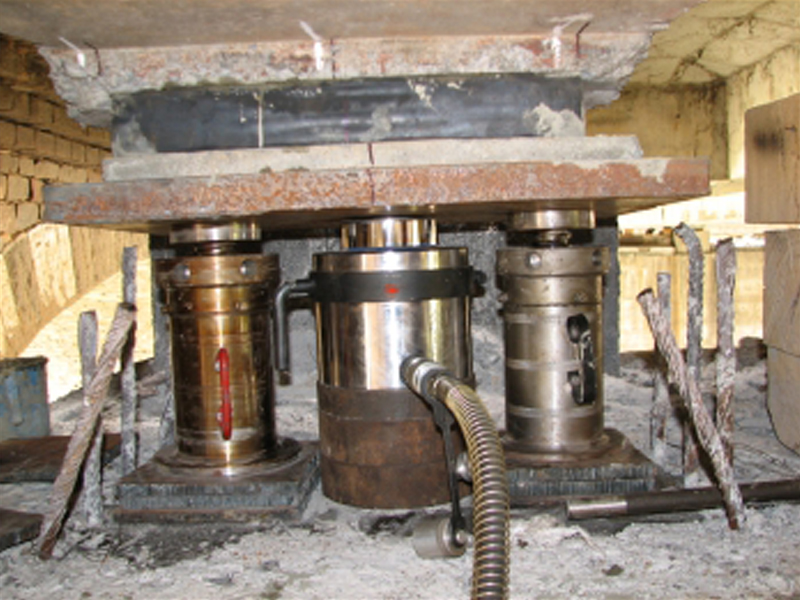

Low Height Jacks Applications in Saudi Arabia

In Saudi Arabia, industries don’t deal in lightweights. From oil rigs to megastructures, everything has a building aim to last and move with muscle. That’s where Single Acting Low Height Jacks come in. These compact power units are great for complex work and industries. It is all thanks to their ability to lift big loads in tight spots.

Where They Work Best:

• Oil & Gas Fields: Whether it’s pipeline installation or wellhead maintenance, low height jacks make lifting large equipment under minimal clearance a no-drama task. They're a dependable choice in desert rigs and refinery plants alike.
• Petrochemical Facilities: During shutdowns and overhauls, heavy vessels and machinery need accurate positioning. These jacks handle it with ease and with no extra lifting frames, no delays.
• Construction Projects: Used under precast segments, bridge supports, or structural plates, these construction hydraulic jacks are ideal for on-site leveling, lifting, or shifting.
• Railway & Metro Work: For rail track repairs or metro infrastructure upgrades, these jacks deliver solid lift without needing massive clearance or complex setups.

Why Saudi Industries Prefer Them:

• No-Nonsense Setup: Quick to place, fast in action, these jacks come with the concept of just plug the pump and press. Be it any rugged environment, these jacks are ready.
• Made for Harsh Climates: Dust, heat, and long working hours cannot impact these jacks. Be it a high team or very cold, these jacks have a structure that will withstand and perform.
• Serious Lifting Power: With capacities up to 200 tons, you can use these jacks for any industry with ease.

Single Acting Jacks in Saudi Industries aren’t backup tools. These are the tools that work in front. These are perfect for lifting, construction, and more. No matter what your industry is, these are there for you. In fact, these jacks are lifting the country’s backbone—one ton at a time.

Why Choose Orione Hydropower

At Orione Hydropower, we don’t just make hydraulic jacks. We build trust with every single task. And when you use these in Saudi Arabia, you will see the difference. From lifting solutions to working in extreme conditions, our customized solutions work the best for you. Why? Well, we do not just create but we craft products that last long. Know more here.

Here’s what sets us apart in Saudi

• Built for Heavy Lifting, Tested for Reality: We design Low Height Jacks to lift heavy weights easily. Be it 10 or 200 tons, our jacks can do that. Each unit works through rigorous pressure testing first. So, the product that reaches you is the best. We ensure quality and support.
• Saudi-Minded Solutions: We understand your needs in arid and desert conditions. This is why we aim to offer you solutions that work for you. Our high-quality hydraulic equipment is based on this idea only. With hardened steel, heat-treated internals, and top-grade seals, we craft marvel. No part is an afterthought.
• Consistency Over Hype: We’ve been doing this for years, supplying jacks to petrochemical plants, construction sites, and refineries across the Kingdom. Our clients come back not because of catchy claims, but because the jacks deliver without complaints.
• Zero Compromise on Materials: You won’t find shortcuts in our manufacturing. Our process is standard and detailed. We are reliable low height jacks manufacturer across borders.
• Direct Support to You: Our Saudi clients get prompt support, straightforward communication, and on-time shipments. We aim to prevent problems.

Our Top 3 USPs

• Performs reliably in Saudi Arabia’s heat, dust, and rough site conditions.
• Superior materials mean fewer breakdowns and longer service life.
• From manufacturing to construction, our jacks are here for you.

When you're hunting for a trusted hydraulic jack supplier in Saudi Arabia, Orione Hydropower gives you peace of mind, backed by metal, not words. From oil rigs to urban megastructures, we help you lift heavy without lifting doubts.

Frequently Asked Questions (FAQs)

1. What makes Low Height Jacks ideal for tight spaces?

As part of the Low Height Jacks FAQs, this question comes up often. These jacks are specifically designed with a compact body and low closed height. This allows them to fit in areas where traditional jacks won’t work. Their plain ram design and small base diameter make them perfect for lifting in confined areas such as under machines, inside narrow maintenance pits, or between structural beams.

2. Can Low Height Jacks be mounted horizontally?

This is one of the most common Single Acting Hydraulic Jacks Questions. So the answer is yes. Thanks to their compact structure and plain ram design, they maintain full performance even when used sideways. This is great for construction and manufacturing units. So, when there is a compact space, you can also use this one easily. This is mainly due to their size. In either case, ensure that the base is fixed properly.

3. What’s the best way to use Low Height Jacks safely?

There are so many Hydraulic Jack Usage Tips that you must take care of. So, the first is proper handling to avoid any slippage. You must use it on a flat and solid surface only. You should place it in the center of the load for best handling. Work based on the capacity mentioned. Use support blocks to stabilize the lifted load and never work under an unsupported jack.

4. How often should I service a Low Height Jack?

Routine checks are key to the Maintenance of Low Height Jacks. For heavy-duty or dusty environments, inspect every 3 to 6 months. Look for oil leaks, worn seals, or reduced lifting speed. A full inspection yearly helps ensure safe and long-term use.

5. Can these jacks handle Saudi Arabia’s climate?

Yes. Orione’s jack design comes with heat-treated materials and strong seals to handle Saudi heat and dry air. Just ensure that you use the proper oil grade for higher temperatures and store the jack away from direct sunlight when idle.
