Span Lifting Jacks

Compact with ram stopper design ideally suited where space is limited

Lifting application requiring sustained load holding in Infrastructure projects, heavy fabrication

Low height design for low clearance areas

Tilt saddle to take care of angular loading

Internal stopper prevents ram ejection

Used in low clearance confined area

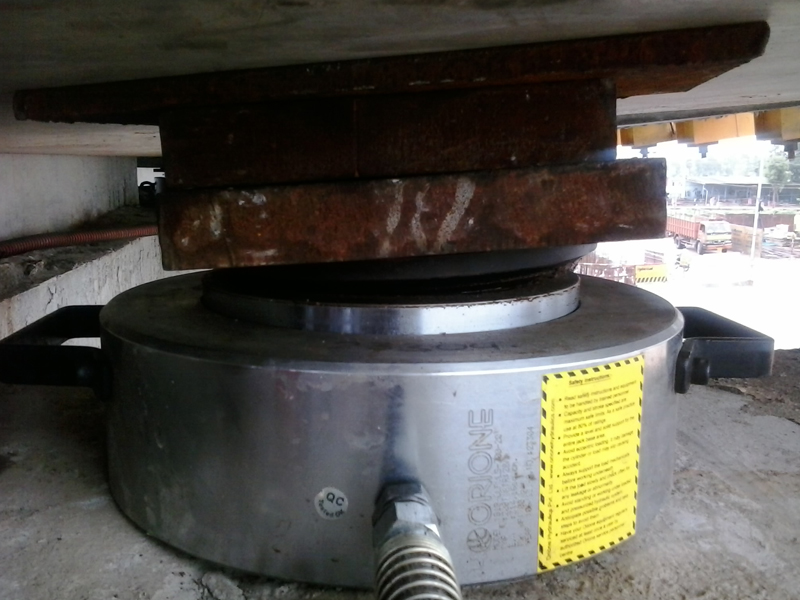

Ideally suited for precision lifting, alignment of machinery, heavy structures and girders requiring sustained load holding

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil Cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg.)	Suitable pump
200	2199	50	CSTS 200-50	314.2	1571	200	75	OHP-2P4/2-5
250	2661	45	CSTS 250-45	380.1	1711	220	100	OHP-2P4/2-5
250	2661	75	CSTS 250-75	380.1	2851	250	105	OHP-2P4/2-5
250	2661	100	CSTS 250-100	380.1	3801	275	118	OHP-2P4/2-8
300	3167	100	CSTS 300-100	452.4	4524	290	162	OHP-2P4/2-8
400	4948	40	CSTS 400-40	706.9	2827	235	220	OHP-2P4/2-8
500	4948	50	CSTS 500-50	706.9	3534	320	310	OHP-2P4/2-8

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil Cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg.)	Suitable Pump
100	1077	150	CLTS 100-50	153.9	770	175	40	OHP-2P4/2-5
100	1077	75	CLTS 100-75	153.9	1155	200	47	OHP-2P4/2-5

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil Cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg.)	Suitable pump

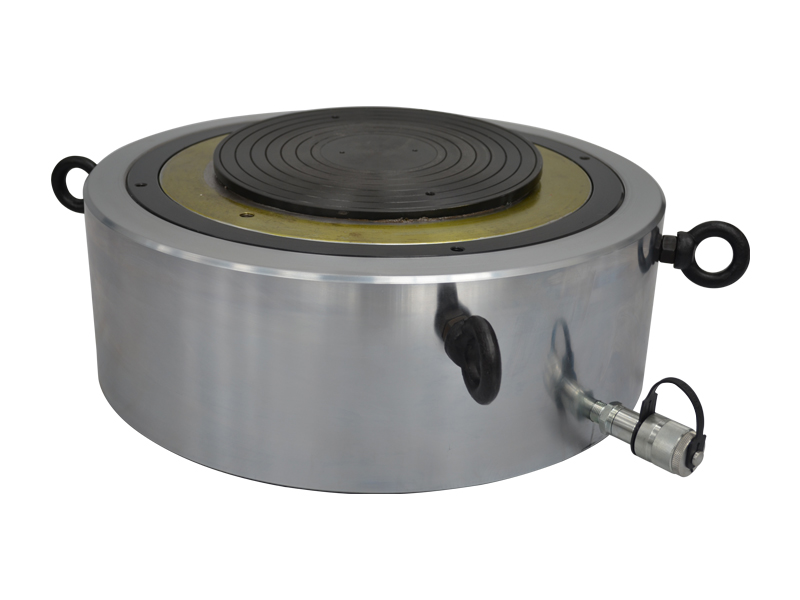

250	2661	45	OLPVLS 250-45	380.1	1711	140	65	OPU-2-20-HS
400	4008	45	OLPVLS 400-45	572.6	2576	160	112	OPU-2-20-HS
500	4948	45	OLPVLS 500-45	706.9	3181	170	158	OPU-2-20-HS
800	7939	45	OLPVLS 800-45	1134.1	5104	190	275	OPU-2-20-HS
1000	9930	45	OLPVLS 1000-45	1418.6	6384	220	392	OPU-2-20-HS

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil Cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg.)	Suitable pump
75	1077	130	CSLS 75-30	153.9	462	125	17	OHP-2P4-2-5
100	1077	60	CSLS 100-60	153.9	924	160	25	OHP-2P4-2-5
200	2199	55	CSLS 200-55	314.2	1728	180	63	OHP-2P4-2-5
250	2661	60	CSLS 250-60	380.1	2281	200	86	OHP-2P4-2-8
250	2661	100	CSLS 250-100	380.1	3801	240	102	OHP-2P4-2-8
