Hollow Ram Jacks Double Acting Manufacturers In Saudi Arabia

Hollow Ram Jacks Saudi Arabia – Double Acting Overview

Double Acting Cylinders with Hydraulic Hollow Ram Jacks in Saudi Arabia are made for heavy jobs that demand raw power. Also, each unit's designs focus on a hollow plunger that allows threaded bars or steel strands to pass directly through the jack. This through-hole feature makes them a preferred tool. You can use these for post-tensioning, anchoring, bush removal, and pull testing. Further, these are perfect for large-scale construction projects.

Moreover, the jack grips the bar and holds steady. This makes it the correct fit for jobs like pre-stressing concrete beams or pulling high-tensile rods. Unlike single-acting jacks, these Double Acting Cylinders push and pull with hydraulic force in both directions. That means faster action, tighter control, and more consistency when every load cycle counts.

Manufactured by Orione Hydropower, these high-pressure hydraulic cylinders are perfect. These use corrosion-resistant metal to stand up to rough use. Built to hold up under blistering heat and gritty site conditions, these jacks don’t back down. That’s why professionals across Saudi Arabia prefer these. They keep them on hand for bridge lifting, foundation loading, and keeping heavy machines in check.

During pile load testing, the jack sits firmly on the pile cap, working in sync with a hydraulic pump and load cell. This setup delivers real numbers on which data engineers can work with. This setup gives accurate readings for settlement and bearing load.

Each Orione unit is built for long-term use. The internal seals resist wear, and the external body takes a beating without cracking. For companies where downtime hits hard, these Hydraulic Hollow Ram Jacks are a boon. They stay in the field longer, deliver consistent push-pull power, and help get serious structural work done.

Hollow Ram Jacks – Double Acting Technical Specifications

Orione’s ODH Series Hydraulic Hollow Ram Jacks are engineered to deliver hydraulic force in both directions. Also, the load capacity of hydraulic jacks makes it a powerful solution for pre-stressing, post-tensioning, and load testing. These high-pressure hydraulic cylinders can withstand demanding industrial conditions. Here are the important hydraulic jack technical details.

Double Acting Jack Saudi Arabia Specifications

Capacity Range: 10 to 150 tons
Stroke Length: 50 mm to 150 mm
Maximum Working Pressure: 700 bar
Cylinder Type: Double Acting, Hollow Ram, Oil Return
Design: Plunger which has a central hole to introduce a bar or strand

Hydraulic Jack Technical Details

Threads vary by model: M30x2P to M105x2P
Custom versions include additional mechanical fittings
Saddle Types: Plain and Threaded
If the stroke length of Hollow Ram Jacks is large, it will work in the best way.

Capacity 10 - 150 ton / Stroke 50 - 150 mm / Max. Working Pressure 700 bar

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	103	75	ODH 10-75	14.7	110	195	5.5
10	103	100	ODH 10-100	14.7	147	220	6
20	202	50	ODH 20-50	28.9	144	185	12
20	202	100	ODH 20-100	28.9	289	235	14.5
20	202	150	ODH 20-150	28.9	433	285	17
30	309	50	ODH 30-50	44.2	221	200	13.5
30	309	100	ODH 30-100	44.2	442	250	16
30	309	150	ODH 30-150	44.2	663	300	19
50	528	100	ODH 50-100	75.4	754	260	28
60	641	75	ODH 30-75	91.6	687	245	27.5
60	641	100	ODH 30-100	91.6	916	270	30
60	641	150	ODH 30-150	91.6	1373	320	34.5
100	1093	75	ODH 100-75	156.1	1171	270	53
100	1093	100	ODH 100-100	156.1	1561	295	57
150	1649	150	ODH 150-150	235.6	3534	350	95

Hollow Ram Jacks – Double Acting Features and Benefits

Built for aggressive lifting and pulling tasks, these Hollow Ram Jacks – Double Acting are great. The series brings raw strength and sharp control to job sites that don't forgive weakness. These jacks handle intense loads without bending under pressure.

Their hydraulic jack features are the best. With dual-direction hydraulic power, they give you better hold over movement. Hence, these are good in jobs like pre-stressing concrete or anchoring support beams. Forged from corrosion-resistant metals, they shrug off heat, debris, and rough handling.

These are durable hydraulic jacks you can use across construction yards and repair zones without flinching. When projects demand dependable lifting muscle, this series checks every box. Count on this as your go-to efficient lifting equipment, made for those who don’t settle.

Advantages of Double Acting Hollow Ram Jacks

Double Acting Design: Hydraulic extension and retraction provide faster cycle times. This makes them better compared to single-acting jacks.
Multiple Load Capacities: Available in variants from 10 to 150 tons. You can use it for wide-ranging industrial and construction tasks.
High Stroke Range: Stroke lengths from 50 mm to 150 mm. These can accommodate diverse lifting and pulling operations without swapping cylinders.
Oil Return Mechanism: Controlled oil-powered return eliminates manual resetting. This improves repeated usage under heavy-duty conditions.

Hydraulic Jack Features

Working Pressure: 700 bar that has a standard across all models for better performance with a lot of hydraulic power units.
Alloy Steel Body: Built from heat-treated high-strength alloy steel for rugged durability and high impact resistance.
Corrosion-Resistant Finish: Baked enamel coating adds surface protection, extending life in harsh or outdoor job sites.
Precise Engineering: Each model is calibrated for max safety and function at 80% rated load capacity to extend equipment lifespan.

Durable Hydraulic Jacks You Can Depend On

ODH-100-75: Load capacity of 100 tons, stroke 75 mm, closed height 270 mm, weight 53 kg.
ODH-20-100: 20-ton capacity, 100 mm stroke—perfect for medium-load anchoring, testing, and gear extractions.

Efficient Lifting Equipment for Professionals

Quick-connect ports allow fast coupling with B-700S or similar hydraulic pumps.
Delivers consistent lifting power in vertical and horizontal orientations.
Double acting cylinder operation reduces total cycle time by 30–40% over single-acting jacks.

Hollow Ram Jacks – Double Acting Applications Across Industries

Double Acting Hollow Ram Jacks in Industries throw their weight in both directions i.e. hydraulic pull and push. A hollow core runs straight through the piston and plunger, built to handle cable-fed or rod-through operations without pause.

Hydraulic Jacks Applications

Pile Load Testing

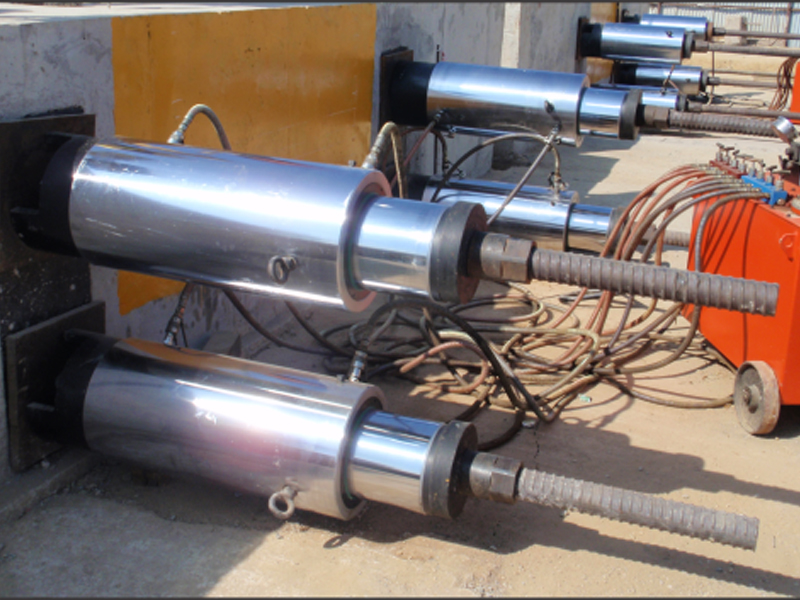

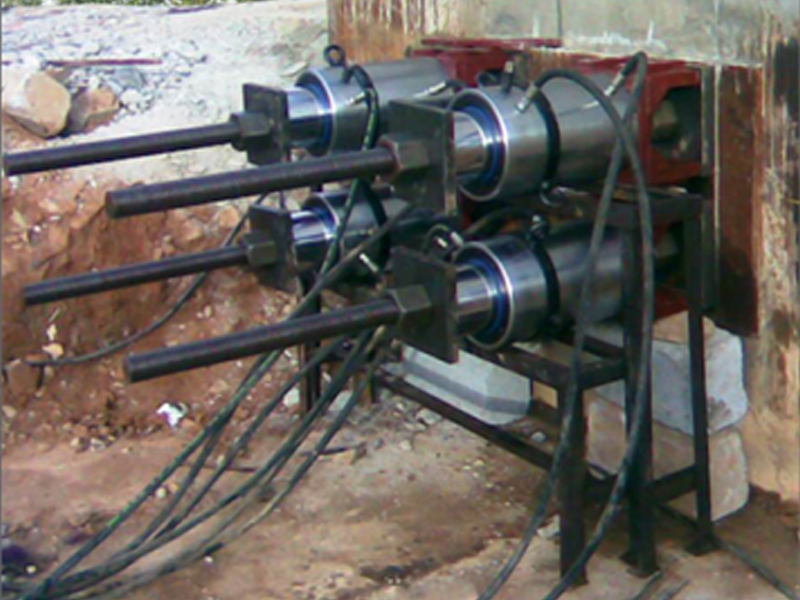

These jacks clamp onto the pile with a threaded rod running through the hollow body. They apply both upward and downward hydraulic pressure, simulating structural stress and providing real-time resistance data. Their fast retraction cuts waiting time between tests, a win on busy construction timelines.
Post-Tensioning
On reinforced concrete sites, tendons pass through the jack’s hollow cylinder. Hydraulic power then applies controlled pulling force to reinforce beams or slabs. Just direct force used daily in high-load concrete decks and bridge slabs.
Cable Splicing and Field Maintenance
For power and telecom industries, the jacks apply equal pressure on both sides of high-tension cables. Their two-way motion guarantees a tight grip during splicing or release, while the hollow bore keeps everything aligned.

Double Acting Hollow Ram Jacks in Industries

Construction: Deployed as construction Hydraulic Jacks, they lift beams, tension formwork, and handle base-leveling tasks under load. Their ability to apply and release force without mechanical resets makes them ideal for precision foundation work.
Automotive: Used in shops and factories as automotive lifting equipment for removing bearings, pushing suspension arms, or pulling axles. Dual hydraulic motion eliminates manual resets, speeding up repairs and reducing tool fatigue.
Mining & Rail: From track alignment to structural hold-downs, these jacks survive punishing sites loaded with debris and vibration. They bring the push-pull power needed to move heavy assemblies or maintain underground gear.
Energy: On oil rigs and power plants, they tension turbine bolts, align pipelines, and press fit components with controlled hydraulic action. The remote use of bidirectional force reduces manual labor and supports tight-space operations.

Why Choose Orione Hydropower

Orione Hydropower stands out in Saudi Arabia as a trusted hydraulic jack supplier with real ground-level expertise in industrial lifting systems. Our reputation is built on solid product consistency and deep industry understanding.

We are a reliable Double Acting Hollow Ram Jacks manufacturer delivering equipment that handles demanding load cycles without breaking down under pressure. Our jacks are built to work hard on-site, on offshore rigs, and during precision lifting tasks.

Every piece of our high-quality hydraulic equipment is built for work. We don’t roll the dice on quality. What you order is what you run, without delay.

Here’s how we keep it that way:

Each jack is pressure-tested at maximum rated load.
Welds go through ultrasonic and magnetic particle testing.
Valves are torque-checked and cycled repeatedly before packaging.
Final assembly is reviewed by operators.

Our customized hydraulic solutions in Saudia Arabia are built based on exact figures: stroke length, tonnage, fitting compatibility, terrain conditions, and operating cycles. From highway bridge contractors to oil facility operators, we’ve delivered solutions that fit existing systems and push project timelines forward.

Saudi Arabia’s industries move on trust and consistency. Orione Hydropower delivers both. Clients stick with us not because of branding but because our jacks lift what they’re supposed to.

If you’re looking for hydraulic equipment that’s built for serious work, Orione Hydropower is the name professionals in Saudi Arabia count on.

Frequently Asked Questions (FAQs)

1. Can these jacks handle center-hole operations like tensioning or pulling?

Yes. These jacks are built with a hollow ram design that allows threaded rods or cables to pass through the center. This makes them ideal for tensioning anchor bolts, pushing/pulling shafts, and other hollow-cylinder tasks. If you're dealing with pulling applications in tight industrial setups, these jacks are a solid fit.

2. What are some Hydraulic jack usage tips for maximum durability?

First, always bleed trapped air before use. Never sideload. Use clean hydraulic fluid. Keep fittings tight. In dusty Saudi Arabian conditions, cover exposed rod surfaces between uses. Always retract the ram when not in use to avoid pitting or corrosion.

3. What makes Double Acting Hollow Ram Jacks different from single-acting ones?

While single-acting jacks extend with hydraulic pressure and then just sit there waiting for gravity to pull them back, Double Acting Hollow Ram Jacks don’t stall. This means it does not rely on weight or tilt to retract. You can get tighter control, quicker turnarounds, and improved action every cycle. And yes, it is one of the common Double Acting Hollow Ram Jacks FAQs.

4. How often should I do maintenance of Double Acting Hollow Ram Jacks?

If it’s in use, give it a look every 30 hours or once a week.

Wipe down grit
Grease moving parts
Check seals for signs of leaks or wear
Don’t leave it outside, especially in the Saudi heat.

If it’s part of your daily setup, tighten your schedule. You’ll spot issues before they stall your job.

5. What pressure ratings do Saudi Arabia Orione Hydropower’s Double Acting Hollow Ram Jacks support?

This is one of the most commonly asked Hydraulic Jacks questions. So, you need to work with 700 bars and 10,000 PSI at full tilt. Match your hydraulic pump’s output to this figure, or risk blowing a seal or worse.
