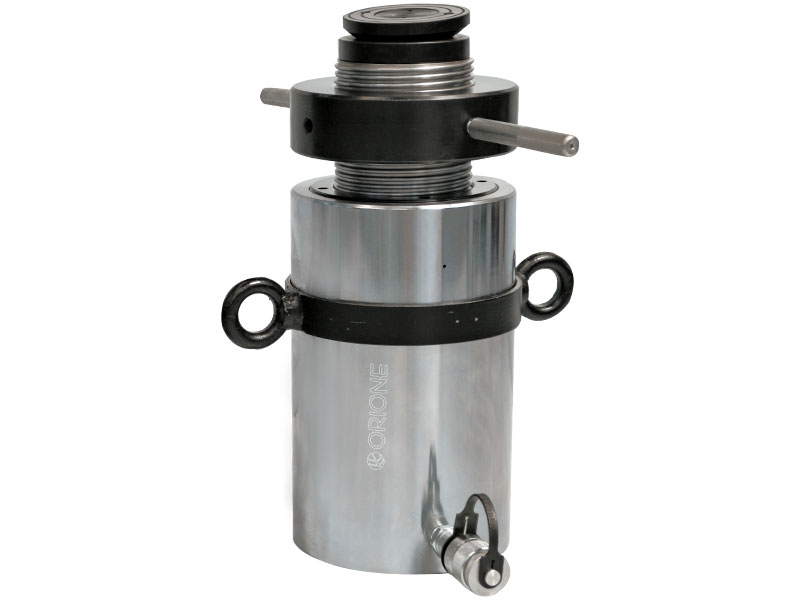

General Purpose Jacks Threaded Ram Manufacturer in Saudi Arabia

General Purpose Hydraulic Jacks with threaded rams work well in tough situations. They will not slip or lose control at all, even under pressure. That’s why they’re trusted for serious industrial tasks. Also, you’ll find them in workshops, construction sites, shipyards, and assembly lines.

What sets these apart is the Single Acting Hydraulic Jacks mechanism. It pushes with hydraulic pressure but retracts through load return or spring force. That might sound basic, but this design is pure utility. Threaded rams further add to their grip strength and load control.

Engineers and maintenance crews depend on these as versatile Hydraulic lifting equipment because they don’t break down under fatigue. They’re easy to maintain and even easier to deploy. Also, the range of tonnage options and stroke lengths allows for matching with industrial demands.

Across sectors, these units are considered reliable Industrial Hydraulic Jacks for applications where underperformance is not tolerated. They don’t pretend to be anything; they lift, hold, and keep operations running.

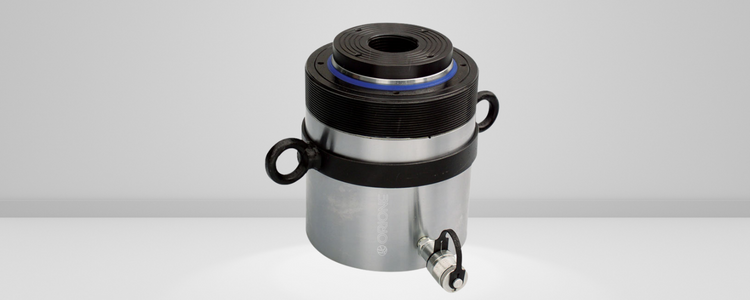

General Purpose Jacks Threaded Ram Overview

General Purpose Hydraulic Jacks are made to provide strength and daily wear in the demanding setups of your company. These are daily drivers for professionals handling lifting, pushing, pressing, or holding applications across construction, shipbuilding, railways, and heavy machinery maintenance. Single Acting Hydraulic Jacks always apply force in a single direction to allow quick and simple operation. Apart from this, they have threaded saddles and base mounting holes. So, you can position them easily across different applications.

With a compact size, they deliver strong output. This means that you can use them with manual, electric, or air-powered pumps. Also, these Spring Return Hydraulic Jacks work best where controlled movement and quick cycles are important.

Each jack is built with a lot of care, going through a step-by-step process. That means it can handle heavy weights, rough use, and tricky conditions without giving up on you. They can pressure up to 700 bar if placed firmly among High-Pressure Hydraulic Cylinders.

During the assembly, each part will be checked to ensure it’s working. Plus, because every job site in Saudi Arabia is different, it really helps to have equipment that can keep up without needing constant fixing.

In the end, you get a jack that’s simple to use, built to last, and ready to take on whatever your day throws at it. If you're in a field that doesn't allow errors or downtime, investing in General Purpose Hydraulic Jacks with Single Acting Hydraulic Jacks design can mean staying on schedule without cutting corners.

General Purpose Jacks Threaded Ram Technical Specifications

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	111	150	OST 10-150	15.9	239	245	4.50
15	167	150	OST 15-150	23.8	356	250	6.50
20	218	150	OST 20-150	31.2	468	260	9.00
25	270	150	OST 25-150	38.5	577	270	11.30
30	309	150	OST 30-150	44.2	663	275	14.50
50	550	150	OST 50-150	78.5	1178	290	26.50
75	792	150	OST 75-150	113.1	1696	295	37.00
100	1077	150	OST 100-150	153.9	2309	305	56.00
150	1589	150	OST 150-150	227	3405	325	86.00
200	2199	150	OST 200-150	314.2	4712	340	110.00
250	2661	150	OST 250-150	380.1	5702	350	134.00
300	3167	150	OST 300-150	452.4	6786	370	176.00
400	4008	150	OST 400-150	572.6	8588	405	240.00
500	4948	150	-	706.86	10603	-	0.00

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	111	150	OSTS 10-150	15.9	239	255	4.7
15	167	150	OSTS 15-150	23.8	356	265	6.7
20	218	150	OSTS 20-150	31.2	468	275	9.3
25	270	150	OSTS-25-150	38.5	577	285	11.7
30	309	150	OSTS 30-150	44.2	663	290	15
50	550	150	OSTS 50-150	78.5	1178	305	27
75	792	150	OSTS 75-150	113.1	1696	320	38
100	1077	150	OSTS 100-150	153.9	2309	325	57
150	1589	150	OSTS 150-150	227	3405	350	88.5
200	2199	150	OSTS 200-150	314.2	4712	365	114
250	2661	150	OSTS 250-150	380.1	5702	385	139
300	3167	150	OSTS 300-150	452.4	6786	405	183.5
400	4008	150	OSTS 400-150	572.6	8588	445	252
500	4948	150	OSTS 500-150	706.86	10603	465	363

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
600	5987	150	OLTS 600-150	855.3	12829	495.00	495
800	7939	150	OLTS 800-150	1134.1	17012	535.00	731
1000	9930	150	OLTS 1000-150	1418.6	21279	570.00	970
1500	15154	150	OLTS 1500-150	2164.8	32472	660.00	1810
2000	20458	150	OLTS 2000-150	2922.5	43837	750.00	2705

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	111	50	OSPS 10-50	15.9	80	145	2.6
10	111	100	OSPS 10-100	15.9	159	195	3.4
10	111	150	OSPS 10-150	15.9	239	245	4.2
10	111	200	OSPS 10-200	15.9	318	295	4.9
15	167	50	OSPS 15-50	23.8	119	155	4.6
15	167	100	OSPS 15-100	23.8	238	205	5.6
15	167	150	OSPS 15-150	23.8	356	255	6.6
15	167	200	OSPS 15-200	23.8	475	305	7.6
20	218	50	OSPS 20-50	31.2	156	160	5.1
20	218	100	OSPS 20-100	31.2	312	210	6.3
20	218	150	OSPS 20-150	31.2	468	260	7.7
20	218	200	OSPS 20-200	31.2	623	310	8.9
25	270	50	OSPS 25-50	38.5	192	170	7
25	270	100	OSPS 25-100	38.5	385	220	8.7
25	270	150	OSPS 25-150	38.5	577	270	10.3
25	270	200	OSPS 25-200	38.5	770	320	12.1
30	309	50	OSPS 30-50	44.2	221	175	9.4
30	309	100	OSPS 30-100	44.2	442	225	11.9
30	309	150	OSPS 30-150	44.2	663	275	13.9
30	309	200	OSPS 30-200	44.2	884	325	15.9
50	550	50	OSPS 50-50	78.5	393	190	16
50	550	100	OSPS 50-100	78.5	785	240	19.5
50	550	150	OSPS 50-150	78.5	1178	290	23
50	550	200	OSPS 50-200	78.5	1571	340	27
75	792	50	OSPS 75-50	113.1	565	205	22.9
75	792	100	OSPS 75-100	113.1	1131	255	27.9
75	792	150	OSPS 75-150	113.1	1696	305	33.9
75	792	200	OSPS 75-200	113.1	2262	355	38.9
100	1077	50	OSPS 100-50	153.9	770	205	31
100	1077	100	OSPS 100-100	153.9	1539	255	38.5
100	1077	150	OSPS 100-150	153.9	2309	305	45.5
100	1077	200	OSPS 100-200	153.9	3079	355	53
150	1589	50	OSPS 150-50	227	1135	225	56
150	1589	100	OSPS 150-100	227	2270	275	67
150	1589	150	OSPS 150-150	227	3405	325	78
200	2199	50	OSPS 200-50	314.2	1571	240	74.5
200	2199	100	OSPS 200-100	314.2	3142	290	90
200	2199	150	OSPS 200-150	314.2	4712	340	105.5
250	2661	100	OSPS 250-100	380.1	3801	305	114
250	2661	150	OSPS 250-150	380.1	5702	355	131
250	2661	200	OSPS 250-200	380.1	7603	405	148
300	3167	100	OSPS 300-100	452.4	4524	320	148
300	3167	150	OSPS 300-150	452.4	6786	370	171
300	3167	200	OSPS 300-200	452.4	9048	420	194
400	4008	100	OSPS 400-100	572.6	5726	355	201
400	4008	150	OSPS 400-150	572.6	8588	405	228
400	4008	200	OSPS 400-200	572.6	11451	455	254
500	4948	100	OSPS 500-100	706.9	7069	365	270
500	4948	150	OSPS 500-150	706.9	10603	415	306
500	4948	200	OSPS 500-200	706.9	14137	465	343

General Purpose Jack specifications reflect a balance of raw strength and technical refinement. They operate on single-acting hydraulic return. It means hydraulic pressure extends the piston while an internal spring handles retraction. Because of this setup, operators gain tighter control with fewer complications. Unlike bulkier systems, these jacks manage heavy-duty output without requiring bulky attachments or continuous external monitoring.

Here’s a detailed overview of Single Acting Jack Technical Details that matter on ground-level operations:

Single Acting Hydraulic Jacks – Model: OST Series
Capacity Range: 10 to 500 tons
Stroke: 150 mm for all models
Effective Area: From 15.9 cm² (10 ton) to 706.86 cm² (500 ton)
Oil Capacity: 239 cc to 10,603 cc
Closed Height: 245 mm (10 ton) to - (500 ton model not available)
Weight (Approx.): 4.5 kg to 240 kg

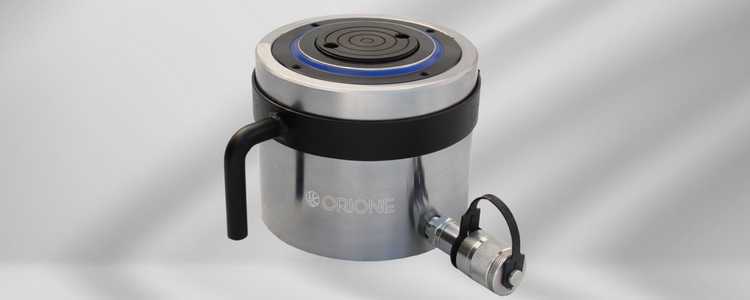

Spring Return Hydraulic Jacks – Model: OSTS Series
Capacity Range: 10 to 500 tons
Stroke: 150 mm for all models
Effective Area: 15.9 cm² to 706.86 cm²
Oil Capacity: 239 cc to 10,603 cc
Closed Height: 255 mm (10 ton) to 465 mm (500 ton)
Weight (Approx.): 4.7 kg to 363 kg
High Capacity Hydraulic Jacks – Model: OLTS Series
Capacity Range: 600 to 2000 tons
Stroke: 150 mm for all models
Effective Area: 855.3 cm² to 2922.5 cm²
Oil Capacity: 12,829 cc to 43,837 cc
Closed Height: 495 mm (600 ton) to 750 mm (2000 ton)
Weight (Approx.): 495 kg to 2705 kg

Meanwhile, all parts work in sync to offer long-term durability. In shipyards or railway workshops, every component plays a part in sustaining daily productivity.

Moreover, the cylinder bore diameter and piston area match specific lifting ratios, which helps control movement speed during load handling. Operators can also interchange jacks across different pump types, including manual hand pumps or motorized hydraulic units.

Moreover, the return spring contributes directly to cycle timing and safety. A weak return spring will slow down your operations. That’s why manufacturers work on spring strength and placement only.

If you're someone who counts on tools that show up and deliver every time, these General Purpose Jack Specifications and Single Acting Jack Technical Details reveal why these jacks stand apart.

General Purpose Jacks Threaded Ram Features and Benefits

Threaded Hydraulic Jack Features

Collar threads and base mounting holes: These built-in threads and holes allow you to fix the jack securely in one place. Furthermore, they make the setup quicker and safer, so the jack doesn’t slip or move while in use.
Spring return system: This system helps the plunger return to its original position automatically once the job is done. As a result, it saves time and effort since you don’t have to reset it manually.
Safety stop ring: A built-in safety ring stops the piston from extending too far, which helps avoid damage or accidents. It gives users confidence, especially when working under high pressure or lifting heavy items.
Grooved saddles: The top surface has grooves that grip the load securely, preventing it from slipping. This makes lifting safer and more stable, especially on uneven or slippery surfaces.
Compact design for tight spaces: These jacks are small enough to fit into cramped areas where bigger tools can’t reach. You can easily carry them, place them in position, and start working without wasting time.

Advantages of Threaded Ram Jacks

Reliable spring-return cuts cycle time: The jack resets itself quickly after lifting, thanks to the spring-return feature. This reduces the time between lifts, letting you finish jobs faster with less manual effort.
Versatile mounting options: You can place and secure the jack in different ways to suit different tasks. If it’s a flat surface or a tricky angle, these mounting options save time during setup and improve safety.
Precision-controlled lift: The jack will lift slowly and keep the load balanced. It will also prevent accidents, damage, or uneven movements when handling delicate or heavy equipment.
Long product life: Built with tough materials, these jacks last a long time. You won’t need to replace them often and this means that you will have more savings.

General Purpose Jacks Threaded Ram Applications Across Industries

General purpose jacks – single acting are famous for their amazing and dependable performance. What sets them apart is their simple single-acting design, which uses hydraulic pressure to lift and a spring to retract. Let's explore more Hydraulic Jacks Applications:

Automotive Lifting Equipment: Mechanics use Threaded Ram Jacks in industries like automotive workshops for everything from lifting cars during routine inspections. These are the places where a steady performance and service make all the difference. With low-maintenance seals and dependable stroke control, they're a must-have on any garage floor.
Construction Hydraulic Jacks: In building sites, contractors use these jacks to raise beams, realign formwork, and support heavy pre-cast panels. They have rugged frames that resist wear from dust. As there are a lot of Hydraulic Jacks Applications in construction that demand strength, single-acting jacks still deliver both even under heavy compression.
Material Handling and Warehousing: For moving bulky pallets, heavy molds, or loaded shelves, these jacks do the grunt work. Their compact form fits easily into tight warehouse layouts, making them dependable tools for real-time lifting and placement.
Rail and Transportation: Rail mechanics of Saudi Arabia use these jacks to increase track sections, align rails, and support bridge decks. Hence, a simple operation will minimize downtime, and their build handles extreme load variations.
Automotive Lifting Equipment Maintenance: Farmers of Saudi Arabia use these jacks to raise tractors and heavy equipment for maintenance or repairs. Their durable exterior resists mud, rust, and field conditions, which means they’re always ready to get dirty.
Marine and Aerospace: In shipyards and aircraft hangars, Construction Hydraulic Jacks such as marine and aerospace help technicians lift and place heavy components with millimeter precision.

Why Choose Orione Hydropower

When it comes to power-packed lifting tools that don’t quit, Orione Hydropower stands out as a trusted hydraulic Jack supplier and a reliable general purpose Jacks manufacturer of Saudi Arabia. Our selection and uncompromising industry standards will help you get the best products. Here’s why top-tier industries count on us every day:

Range of Hydraulic Jacks: You can select from single-acting or double-acting models, spring return or load return, plain ram or threaded ram with safety lock nut, we build it your way. With 10 Ton to 1000 Ton capacity jacks, you can cover every lifting demand in sectors like Oil & Gas, Power, Cement, Mining, and Railways.
Precision Engineering Backed by Experience: We bring years of hands-on experience into every product. Our jacks exceed industrial expectations. Wiper seals, chrome-plated pistons, strong springs, and solid construction mean every component works hard and lasts long.
Customization That Works Hard: Your work environment isn't generic—neither should your equipment be. As a Reliable General Purpose Jacks Manufacturer, we design Customized Hydraulic Solutions with specific strokes, sizes, and lifting parameters to match your exact lifting setup.
Fully Equipped for On-Site Use: We include everything: high-pressure hose pipes, quick change couplers, pressure gauges, power packs, and hand pumps. With carrying handles or eye bolts on all models, moving and setting up is fast and direct.
Serving Heavy-Duty Industries: Our High-Quality Hydraulic Equipment works round the clock in Defense, Shipbuilding, Petrochemicals, Thermal Power Plants, and more. Clients trust our gear under the most demanding conditions—because it delivers every time.
Built for Tough Jobs: These jacks aren’t for light lifting. They're for the jobs that truly demand power, control, and dependability.

Still wondering who to trust with your lifting challenges? Orione Hydropower answers with rugged machines, precision parts, and field-tested results.

Frequently Asked Questions (FAQs)

What do you mean by general purpose jacks with single acting cylinders?
General Purpose Jacks – Single Acting are powerful hydraulic tools built for lifting, pressing, or pushing heavy loads in one direction only. The ram extends when oil pressure is applied and retracts when pressure is released with the help of a strong internal spring. These jacks work best in construction, railways, shipyards, and heavy equipment servicing.
Are single and double acting jacks different?
Yes. Single and double acting jacks are different in terms that the latter applies force in both directions. The single acting type is widely used for vertical lifts, where gravity helps with retraction. Also, double acting jacks have a big requirement of oil pressure in both directions.
Are these jacks tough enough for heavy-duty industrial work?
Yes, it is all because of their advanced and sturdy design that makes movement easy. They can handle tasks under pressure well. Additionally, they are designed to stay resistant to environmental conditions, which offers better stability and performance.
What do people say about your single acting jacks?
We've been gettin a great feedback from our customers from Saudi Arabia in engineering, infrastructure, and manufacturing. People from Saudi Arabia really appreciate how long the seals last, how easy the jacks are to move around, and how quickly they retract.
Can I use one jack model across different projects?
While one jack can serve multiple tasks, it is best that you select based on the task under consideration. Focus on tonnage, stroke length, and mounting style to have the right serviceability. Further, we are here to help those in need.

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
600	5987	100	OLPS 600-100	855.3	8553	390	357
600	5987	150	OLPS 600-150	855.3	12829	440	404
600	5987	200	OLPS 600-200	855.3	17106	490	450
800	7939	100	OLPS 800-100	1134.1	11341	425	525
800	7939	150	OLPS 800-150	1134.1	17012	475	590
800	7939	200	OLPS 800-200	1134.1	22682	525	654
1000	9930	100	OLPS 1000-100	1418.6	14186	460	721
1000	9930	150	OLPS 1000-150	1418.6	21279	510	800
1000	9930	200	OLPS 1000-200	1418.6	28373	560	879
1500	15154	100	OLPS 1500-100	2164.8	21648	545	1352
1500	15154	150	OLPS 1500-150	2164.8	32472	595	1482
1500	15154	200	OLPS 1500-200	2164.8	43296	645	1612
2000	20458	100	OLPS 2000-100	2922.5	29225	615	2023
2000	20458	150	OLPS 2000-150	2922.5	43837	665	2195
2000	20458	200	OLPS 2000-200	2922.5	58450	715	2367
