Hollow Ram Jacks Single Acting Manufacturers In Saudi Arabia

Hollow Ram Jacks Single Acting in Saudi Arabia Overview

Saudi Arabia’s growing industrial, construction, and oilfield sectors need advanced tools. These tools that combine compact design with strong lifting capacity are critical. Hollow Ram Jacks offer the precision and efficiency needed by these industries. These hydraulic tools perform jobs like lifting, pulling, pushing, and tensioning tasks. Industries like construction, railways, oil and gas, and heavy equipment maintenance need them.

These jacks have a hollow cylinder in the middle to allow cables, rods, or studs to pass through. This makes them better than traditional jacks. All these jacks fall under the category of Single Acting Hydraulic Jacks. This means they use hydraulic pressure to extend the plunger. Now, the load or gravity handles the return movement. This design ensures easier operation, reduced wear, and minimal maintenance. They are compact, which makes them easy to use in narrow spaces. All this without any compromise on power or functionality.

These jacks are a reliable component of hydraulic lifting equipment. The Hollow Plunger Cylinders allow applying force around and through the jack's center. Further, this unique design makes these jacks perfect for lifting and positioning operations.

At Orione Hydropower, we create Hollow Ram Jacks for tough environments. To manufacture these, we use high-tensile steel and advanced sealing technology. The aim is to meet the harsh conditions found in Saudi Arabia. These advanced tools provide lasting performance and corrosion resistance. This dependability is what professionals need every day.

Technical Overview of Hollow Ram Jacks Single Acting

Hydraulic Hollow Ram Jacks are best for industrial operations. Their center hollow design allows threaded rods or cables to pass through the plunger easily. These are perfect for tasks that need both vertical force and through-hole functionality. This helps with pulling, pushing, post-tensioning, bearing removal, and structural support.

These jacks are widely used in Saudi Arabia. The applications are in places where industrial reliability and space-saving are essential. Also, you can use these in construction, mining, infrastructure maintenance, and plant repair. These are the places where heavy-duty machinery and a task force assist.

These fall under single-acting cylinders. It means that they extend when you apply pressurized oil. Further, they retract when you release the pressure. Many variants are equipped with a spring return mechanism. This ensures quick returns. Because of these aspects, they are great for repetitive tasks to save time and simplify operations.

Each unit includes high-pressure hydraulic cylinder, withstanding working pressures up to 700 bar. Also, you can get these models ranging from 10 to 100 tons in capacity and 50 mm to 150 mm in stroke length. These jacks use hardened alloy steel for superior durability. The chrome-plated ram resists corrosion. Also, the wiper seals and overload protection valves help with safety.

The design is highly compact and portable. This allows for easy mounting. Hence, this is perfectly suitable for rugged industrial conditions across Saudi Arabia. The best part is that you can pair it with hydraulic hand pumps for mobile applications or integrate it into larger hydraulic systems.

At Orione Hydropower, we manufacture a range of Hydraulic Hollow Ram Jacks. Additionally, the design is such that it meets diverse load and stroke requirements. Hence, these jacks are the go-to choice for precision tasks in tough environments.

Technical Specifications of Hollow Ram Jacks Single Acting

Selecting a lifting tool for precise work is not easy. You need to understand the complete specifications. This is why you must know the full scope of Hollow Ram Jack specifications. In Saudi Arabia’s construction, power, and infrastructure sectors, these jacks are great. Also, these are famous for their compact build, force accuracy, and simple operation.

Type: Single Acting with Spring Return
Design: Hollow piston with passage for rod or cable
Maximum Operating Pressure: 700 bar (10,000 psi)
Body Material: Corrosion-resistant high-grade metal with chrome-plated plungers
Mounting Options: Threaded collar for accessories like tilt saddles or clevis eyes

Capacity 10 - 100 ton / Stroke 50 - 150 mm / Max. Working Pressure 700 bar

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	110	50	OSH 10-50	15.7	79	150	3.7
10	110	75	OSH 10-75	15.7	118	175	4.2
10	110	100	OSH 10-100	15.7	157	200	4.7
20	231	50	OSH 20-50	33	165	155	8
20	231	100	OSH 20-100	33	330	205	10.5
20	231	150	OSH 20-150	33	495	255	12.5
30	298	50	OSH 30-50	42.6	213	175	10.5
30	298	75	OSH 30-75	42.6	320	200	11.5
30	298	100	OSH 30-100	42.6	426	225	12.5
30	298	150	OSH 30-150	42.6	639	275	14.5
50	550	75	OSH 50-75	78.5	589	210	21
50	550	100	OSH 50-100	78.5	785	235	22
60	605	75	OSH 60-75	86.4	648	225	26
60	605	100	OSH 60-100	86.4	864	250	28.5
60	605	150	OSH 60-150	86.4	1296	300	33
100	990	75	OSH 100-75	141.4	1060	245	45
100	990	100	OSH 100-100	141.4	1414	270	48.5

Hollow Ram Jacks – Single Acting Features and Benefits

Hollow Ram Jacks – Single Acting offers a blend of design, functionality, and strength. This is their ability to work in critical spaces efficiently. This makes them a go-to choice for the Saudi Arabian market. The features and advantages of Hollow Ram Jacks are:

Plain Ram Design
These jacks have a smooth and non-threaded piston rod. Hence, it is perfect for basic lifting or pushing jobs. Their ease of use offers stable performance in general for normal operations.
Spring Return Mechanism
The internal spring allows automatic piston retraction when hydraulic pressure is released. Hence, it reduces reset time. This allows fast and repeatable use in dynamic industrial environments.
Collar Threads
Outer threads on the jack body help you with easy mounting of add-ons like clevises and saddles. This boosts functionality by assisting in easy adaptation with no major setup changes.
Base Mounting Holes
Pre-drilled holes allow easy bolting on the flat surfaces. This offers safety and prevents movement during operation. This is very useful when working on uneven or mobile structures.
Stop Ring Protection
For the damage control, there is an integrated stop ring. This impedes the piston from overburdening during pressure. This improved operations and longevity.
Safety Valve
The built-in pressure relief system automatically vents excess pressure during overload conditions. This protects the tool and the operator. Also, this adds an important layer of safety to high-force operations.
Corrosion-Resistant Materials
These durable hydraulic jacks have chrome-plated plungers and tough metal bodies. Now, this helps them resist dust, moisture, and corrosion. Hence, these jacks are perfect in Saudi Arabia’s challenging outdoor conditions.
Efficient Operation
Recognized as efficient lifting equipment, these jacks reduce manual effort. This further saves operation time and maintains performance with fewer controls. Their lightweight form makes them easy to carry and position on-site.

The combination of performance defines Hollow Ram Jacks' real-world applications. Orione Hydropower delivers quality tools that offer lasting value with every lift. These are the field-friendly tools. Also, these time-tested hydraulic jack features operate effectively in tense environments.

Hollow Ram Jacks – Single Acting Applications Across Industries

Hollow Ram Jacks – Single Acting combine the features of compression and tension beautifully. This makes them essential tools for precise lifting, pulling, or tensioning. Their compact size and ease of use are remarkable. Further, their ability to handle threaded rods or cables makes them valuable tools in various operations.

The common hydraulic jacks applications are as follows:

Post-Tensioning
This is mainly in bridge and building projects. These jacks help apply tension to steel rods or cables set in concrete. The results in structural strength and improved load resistance. This is critical in Saudi Arabia’s growing urban infrastructure.
Cable Splicing
These jacks pull two cable segments together to form a tight, aligned connection. The cables run through the hollow center and are clamped at both ends. Pressurizing the jack creates a strong splice, commonly used in telecom or rigging.
Flange Spreading
The jack is placed between two bolted flanges and pressurized to push them apart. This allows for safe disassembly or inspection of pipes and valves. Further, it causes no damage to the joints. Hence, it works best in petrochemical, pipeline, and maintenance operations in compact setups.
Bolt Tensioning
In mechanical assembly, these jacks stretch bolts. Through this, you get proper clamping pressure. This is quite helpful in maintaining joint integrity under vibration or pressure.

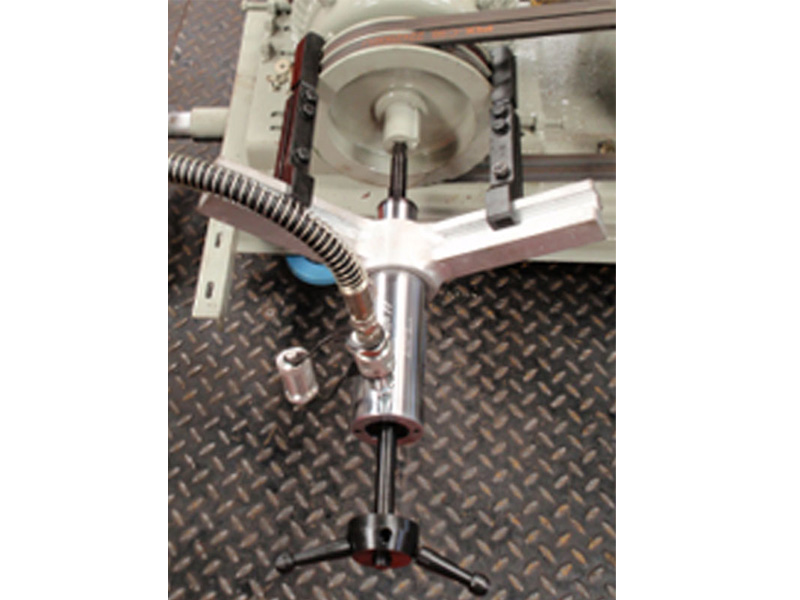

Shaft Extraction
This method removes stuck shafts without damaging other parts. Properly using the mechanism and hydraulic pressure helps in repairs with no damage.

These tools are widely known as automotive lifting equipment. These are part of toolkit in maintenance workshops and heavy-duty vehicle assembly lines. They are also frequently used as construction hydraulic jacks for structural work or lifting. All this is because they showcase reliable load management.

Hence, companies trust Hollow Ram Jacks in industries across Saudi Arabia to meet daily industrial working needs.

Why Choose Orione Hydropower

Saudi Arabia's industrial ecosystem is growing rapidly. And this rise is also increasing the demand for reliable industrial components. This is one reason why having a trusted hydraulic jack supplier is not just about product availability. But it is about providing solutions that fit. This is what we do at Orione Hydropower.

Being one of the most reliable Hollow Ram Jacks manufacturers, our focus is on building tools that perform. Further, our design ensures jacks remain functionally stable and efficient, even under pressure.

We just do not focus on offering, but delivering outcomes that you can rely on. This is why every single tool of ours is field-tested for performance and quality. Our high-quality hydraulic equipment combines safety, precision, and long service life.

Here is what we offer you:

Pressure-tested jacks for dependable high-force output
Corrosion-resistant plungers built for Saudi Arabia’s harsh environments
Threaded collars and mounting holes for flexible usage on-site
Quick-response spring return systems to reduce manual reset time
Sturdy construction for durability and ease of transport

That's not it! If you need customized hydraulic solutions, we are here to help. Be it a change in sturdiness, strokes, or load capacity, we can do it. We have the know-how to design and develop tools for you, even if not in our catalog.

Our goal is simple: deliver what works, support as needed, and stay committed long term. When you choose Orione Hydropower, you’re choosing transparent and efficient processes. You’re choosing reliability and expertise. Further, you are selecting a hydraulic partner who understands and works to meet your needs.

Frequently Asked Questions (FAQs)

When selecting Hollow Ram Jacks – Single Acting in Saudi Arabia, you may have several queries. Below are some of the most common Hydraulic Jacks questions to know.

Q1. What are Hollow Ram Jacks - Single Acting used for?

Hollow Ram Jacks FAQs often begin with this. These jacks are used for lifting, tensioning, cable pulling, and shaft extraction. Their hollow design allows rods or cables to pass through. This makes them ideal for post-tensioning, bolt tensioning, and other dual-force applications. This is mainly needed in the construction or manufacturing industries of Saudi Arabia.

Q2. How do I choose the right model for my job site?

To select the right model, focus on the need for stroke length, load, and space constraints. Always check the need for force and clearance. See whether you need pulling, pushing, or both. For projects in Saudi Arabia, factors like temperature and exposure to dust are important, too.

Q3. What are some key Hydraulic Jack Usage Tips for better performance?

There are various hydraulic jack usage tips for better performance. The top one is about usage and handling. You must always keep Jack upright while using it. Ensure that the hydraulic pump matches and that the rated pressure is not exceeded. Check the conditions and instructions.

Q4. What maintenance steps ensure long-term use of Hollow Ram Jacks?

The maintenance of Hollow Ram Jacks includes:

Checking for oil leaks
Cleaning dust from seals
Inspecting the spring return
Storing them in dry conditions

Regular upkeep improves jack response, extends lifespan, and prevents corrosion. This is more important in desert environments like Saudi Arabia.

Q5. Are Hollow Ram Jacks compatible with all hydraulic systems?

Yes, most jacks are compatible with standard hydraulic hand or electric pumps. But you must always verify flow and pressure specs. Ensuring compatibility avoids performance issues. Further, it improves efficiency in both mobile and fixed hydraulic systems.
