Pancake Jacks Threaded Ram Manufacturer in Saudi Arabia
When space is tight and lifting power can’t take a back seat, Pancake Jacks with Threaded Ram step up with a punch that’s hard to ignore. These low-profile hydraulic jacks are ideal for setups such as bridge work, heavy-duty alignment, and shutdown maintenance. Built to deliver control and endurance, their threaded ram design ensures the load remains supported even after hydraulic pressure is off the table—a must-have for long-duration or high-risk lifting jobs.
As Saudi Arabia’s industrial landscape advances into more complex, high-load operations, the demand for smart, compact lifting solutions is rising fast. The need for compact hydraulic lifting equipment has increased the demand for advanced and better-developed Pancake Jacks. These are now used in oil & gas, infrastructure, and manufacturing. Engineers are looking beyond ordinary low-clearance cylinders and moving towards more reliable, safety-oriented tools.
And the best part of using these jacks is their performance and quality standards. Their reinforcement in the ongoing projects helps the businesses and industries to complete their tasks at the best. That’s exactly why professionals seek a reliable Pancake Jacks manufacturer in Saudi Arabia—one who understands local demands and delivers consistent quality.
In a market that values grit over gloss, Threaded Ram Hydraulic Jacks Saudi Arabia have earned their place. The demand is rising—and so is the bar for trusted hydraulic jack suppliers in Saudi Arabia.

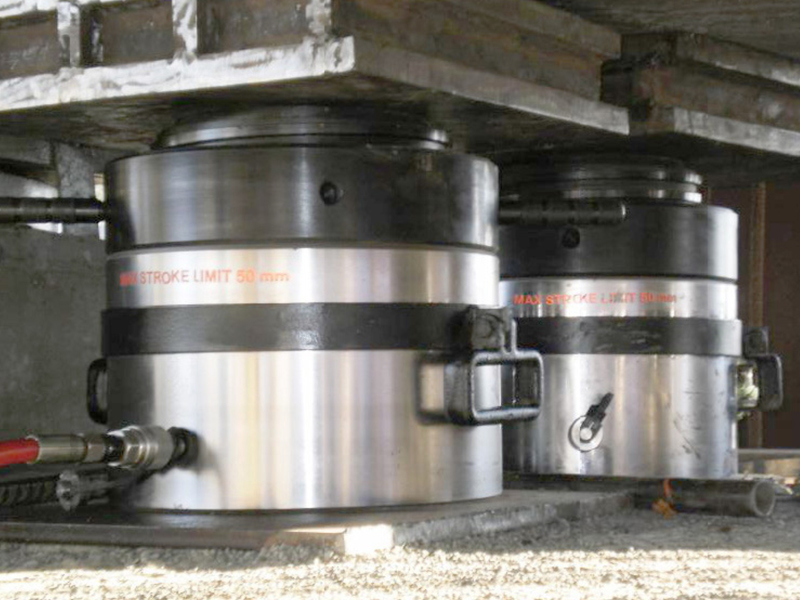

Pancake Jacks Threaded Ram Overview
Hydraulic Flat Jacks Saudi Arabia are purpose-built for tight access spaces where traditional lifting equipment fails. These jacks are a preferred solution across industries in Saudi Arabia. Most of these are the manufacturing and high-end industries which require heavy-duty tools to complete tasks.
Their key advantage lies in their compact body and threaded ram, which provides a mechanical lock for holding loads securely even when hydraulic pressure is removed. This makes them highly suitable for long-duration lifts. Also, if you need to use them on some critical applications, then these are the best deal.
You must be wondering why? Well, these low-height hydraulic cylinders Saudi Arabia are designed for maximum efficiency in confined setups. They work with the optimum force even in shallow spaces. The single-acting hydraulic jacks work using the hydraulic pressure and gravity-assisted return. This makes them perfect for use for multiple tasks.
Their load-return hydraulic jacks configuration reduces complexity and is especially effective in situations where manual reset or retraction isn’t feasible.
Another standout feature is the rugged flat design. This allows them to get beneath any space easily. Once in place, they provide the stability and strength. The threaded ram further improves safety by using the locking mechanism. This is one of the reasons why these are preferred for loading, lifting, and similar tasks.
In Saudi Arabia, technicians favor these jacks for their ease of use, safety assurance, and high cycle durability. The hydraulic flat jacks with threaded rams are known to offer performance without any hassle. This is one of the reasons why the premium industries in oil, manufacturing, petroleum, and so, these are most used.
In demanding applications where control, safety, and compactness matter most, Pancake Jacks – Threaded Ram remains a trusted choice across the Saudi industrial landscape.
Capacity 50 - 1200 ton / Stroke 45 - 50 mm / Max. Working Pressure 700 bar
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 50 | 550 | 50 | OLTVL 50-50 | 78.5 | 393 | 125 | 14.2 |
| 100 | 1077 | 50 | OLTVL 100-50 | 153.9 | 770 | 140 | 25.4 |
| 150 | 1589 | 45 | OLTVL 150-45 | 227 | 1022 | 150 | 44 |
| 200 | 2199 | 45 | OLTVL 200-45 | 314.2 | 1414 | 155 | 57 |
| 250 | 2661 | 45 | OLTVL 250-45 | 380.1 | 1710 | 160 | 77 |
| 300 | 3167 | 45 | OLTVL 300-45 | 452.4 | 2036 | 170 | 98 |
| 400 | 4008 | 45 | OLTVL 400-45 | 572.6 | 2577 | 180 | 128 |
| 500 | 4948 | 45 | OLTVL 500-45 | 706.9 | 3181 | 195 | 186 |
| 800 | 7939 | 45 | OLTVL 800-45 | 1134.1 | 5104 | 245 | 369 |
| 1000 | 9930 | 45 | OLTVL 1000-45 | 1418.6 | 6384 | 260 | 475 |
| 1200 | 12405 | 45 | OLTVL 1200-45 | 1772.1 | 7974 | 280 | 590 |
Pancake Jacks Threaded Ram Technical Specifications
Let's walk you through Pancake Jack specifications that bring dependability and control right to the job site.
Why are these jacks different?
- Consistent Stroke Across Models: You can get the stroke lengths of 30 mm to 40 mm. This is controlled lift mechanism which can support from soft to harsh working conditions.
- Good Profile: Starting from a closed height of just 110 mm, these jacks fit under restricted spaces without losing their ability to lift significant loads.
- Durable Dimensions: Outer diameters range from 145 mm to 415 mm, with ram diameters precisely matched to capacity. It keeps the structure retained and force in balance.
- Threaded Ram Advantage: A threaded ram gives extra grip during extended lifts, adding stability under tension-heavy conditions.
Detailed Model Breakdown:
| Model No. | Capacity (Tons) | Closed Height (mm) | Stroke (mm) | Ram Dia (mm) | Outer Dia (mm) | Oil Volume (cc) | Weight (kg) | Hand Pump |
|---|---|---|---|---|---|---|---|---|
| PCT 50/30 | 50 | 110 | 30 | 100 | 145 | 192 | 13.5 | PHP 200/2 |
| PCT 100/30 | 100 | 125 | 30 | 140 | 185 | 475 | 22.5 | PHP 400/3N |
| PCT 150/30 | 150 | 140 | 30 | 170 | 225 | 697 | 41.5 | PHP 400/3N |
| PCT 200/40 | 200 | 170 | 40 | 200 | 270 | 1281 | 60.5 | PHP 500/6 |
| PCT 250/40 | 250 | 180 | 40 | 220 | 295 | 1548 | 76.5 | PHP 500/6 |
| PCT 300/40 | 300 | 190 | 40 | 240 | 325 | 1894 | 103.5 | PHP 500/6 |
| PCT 400/40 | 400 | 200 | 40 | 270 | 365 | 2324 | 142 | PHP 500/6 |
| PCT 500/40 | 500 | 215 | 40 | 300 | 415 | 2865 | 200 | PHP 500/6 |
What this means for your work:
- These threaded Ram Jack technical details are tuned for industries handling tight-space challenges: shipbuilding, power plants, construction support, and more.
- High hydraulic Jack load capacity makes them reliable during structural lifts and alignments.
- Their compact Jack dimensions cut bulk without compromising control or lifting force.
- When space is tight and strength is non-negotiable, this spec sheet gives you the clarity to pick the right jack for the job.
Features and Benefits of Pancake Jacks Threaded Ram
When size, control, and strength need to go hand in hand, Pancake Jacks with Threaded Ram offer a compact yet powerful solution. These efficient lifting equipment units are built to perform under pressure—literally and structurally. Designed to meet the growing demands of industrial sites across Saudi Arabia, they come packed with smart, safety-oriented engineering that elevates reliability without increasing the footprint.
Key Features & Benefits:
- Single-acting, load return system: Uses hydraulic power for upward motion and gravity to retract. This simple mechanism ensures quick, controlled lifting and smooth lowering.
- Compact pancake design: Ideal for confined environments. These low-profile jacks can slide into spaces where traditional jacks simply won't fit.
- Heat-treated alloy steel body: This ensures structural durability under heavy loads, making it perfect for high-cycle use in demanding conditions.
- Threaded ram with mechanical safety lock-nut: One of the standout Threaded Ram Jack features, the lock-nut holds the load securely in place even after pressure release—great for long-duration holds.
- High-pressure seals: No compromise on lifting force. These seals help maintain consistent hydraulic performance, even in intense, repetitive tasks.
- Custom capacity and stroke options: Whether you're working with heavier loads or limited lifting height, these durable hydraulic jacks can be configured to match your project’s requirements.
- Standard port sizes (1/4" and 3/8" NPT): Easy compatibility with standard fittings. No need to search for specialized components.
- QCC with plastic dust cap: Keeps hydraulic connections clean and safe when not in use, reducing maintenance.
- Hard chrome plated RAM: Enhances resistance against scratches and corrosion, extending the life of the equipment.
What are the biggest advantages of Pancake Jacks? Well, it includes low profile without dropping lifting strength. These threaded Ram Jack features are built for people who need direct control, steady hold, and no weak links. And for those chasing real toughness, these durable Hydraulic Jacks won't work with extra size.
Across Saudi Arabia’s industrial hubs, from Dammam to Riyadh, these jacks are trusted for high-performance lifting in oilfields, shipyards, and construction zones. Their compact build and proven safety make them a reliable choice for the country’s most demanding engineering tasks.
Applications of Pancake Jacks Threaded Ram in Saudi Arabia
Saudi Arabia’s industrial strength demands tools that can handle enormous weight, tight spaces, and challenging field conditions. These jacks deliver precise power where bulkier options don't work. So, below are key sectors where you can see hydraulic jacks applications in Saudi Arabia.
- Refinery and Petrochemical Facilities: There's no room for mistakes as every heavy lift needs to be made without any issues. That’s where these Oil and Gas Industry Lifting Equipment tools come in. If you're raising heat exchangers, heavy valves, or pipeline sections, their low-profile build and threaded lock system keep everything right where it should be.
- Oil and Gas Maintenance and Shutdowns: In offshore and onshore rigs, quick lift and hold mechanisms are essential for pipe alignment, equipment installation, and platform maintenance. Threaded Ram Jacks in Saudi Industries stand out for their safe locking features. With low-clearance structures, they offer a critical edge in confined operations.
- Civil and Structural Projects: These construction hydraulic jacks are up to the task and built to take on vertical loads with sharp accuracy. If placed under precast segments or concrete slabs, they deliver rock-solid control. Whether it's highway flyovers or underground utility tunnels, these jacks adapt to dynamic construction demands with precision and speed.
- Mining and Quarry Operations: The jacks are also used in heavy equipment maintenance, for lifting parts of crushers, conveyor systems, and haul trucks. Their compact form allows them to slide under massive machines and securely lift, even on uneven surfaces.
- Shipbuilding and Marine Engineering: From dry dock work to hull repairs, their flat design fits into slim spaces under vessels or dock components, enabling safe and stable lifts in the harsh marine environment.
- Manufacturing Plants: Used for machine maintenance, assembly line adjustments, or heavy tooling setups. The load return and mechanical lock guarantee safety during routine work and emergency procedures.
Why Choose Our Pancake Jacks Threaded Ram in Saudi Arabia?
At Orione Hydropower, we understand the stakes of industrial lifting. That's why we bring you Pancake Jacks with Threaded Ram that align with Saudi Arabia’s diverse and demanding industrial ecosystem. Our commitment lies in:
- Local expertise: Deep knowledge of Saudi Arabia's industrial requirements and regulatory standards.
- Quality assurance: Durable, tested products designed to withstand harsh conditions and deliver consistent performance.
- Custom solutions: Options for customized capacities, stroke lengths, and accessories to meet unique project demands.
- After-sales support: Comprehensive customer service including training, maintenance guidance, and replacement parts.
- Competitive pricing: High value without compromising quality, helping you stay on budget without risking safety or durability.
Whether you're upgrading your equipment or setting up a new project, trust our Pancake Jacks Threaded Ram for strength, precision, and peace of mind.
FAQs
- Q: What is the main advantage of the threaded ram in Pancake Jacks?
- A: The threaded ram provides a mechanical lock, which holds the load securely even if hydraulic pressure is released. This ensures safety during long-duration lifts.
- Q: Can Pancake Jacks with threaded ram be used in confined spaces?
- A: Yes, their low-profile design makes them ideal for tight and restricted access areas where traditional jacks won't fit.
- Q: What industries in Saudi Arabia commonly use these hydraulic jacks?
- A: They are widely used in oil and gas, petrochemical, shipbuilding, construction, mining, and manufacturing industries.
- Q: Do you provide custom capacity options for these jacks?
- A: Yes, we offer customization on capacity, stroke length, and accessories to meet your specific project needs.
- Q: How do you maintain these Pancake Jacks for long-term use?
- A: Regular inspection of seals, hydraulic fluid levels, and mechanical parts along with professional servicing ensure longevity and safe operation.
